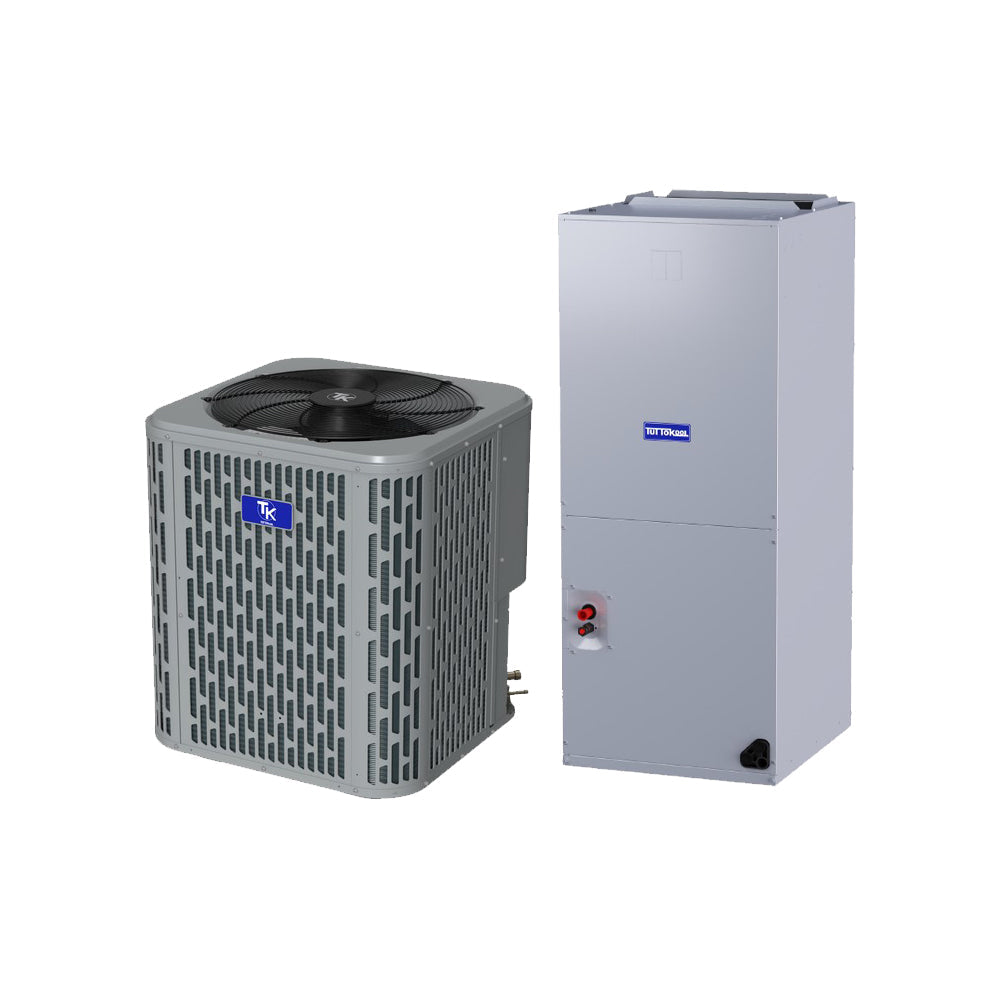

TuttoKool 5 Ton 15.2 SEER2 R-454B Air Conditioning System w/10Kw Heat

IMPORTANT NOTE: When purchasing COOLING ONLY HVAC EQUIPMENT, Florida residents must refer to the new Florida Building Code, 8th Edition Section R501.7.2 which became effective on December 31st, 2023. This section can be viewed online here or you may review the letter provided by the Technical Director of the DBPR Florida Building Codes and Standards in the documents section below.

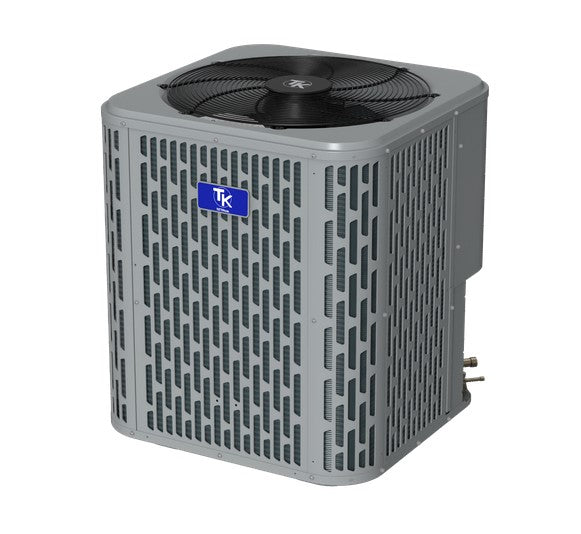

The TuttoKool AIr Conditioning Condenser offers you high quality product at an affordable price, breaking the traditional view that an air conditioner has to be expensive.

Standard Features:

• Eco-friendly R454B refrigerant with low GWP value.
• Energy-efficient compressor.
• Equipped with thermal overload protection.
• High quality condenser with inner-groove copper tube and aluminum fin.
• Service valves with sweat connections and easy-access gauge ports.
• Factory-installed high-pressure switch.
• AHRI certified and ETL listed.
• Filter drier included as accessory.
• Compact design allows for ease of installation, clearance, durability, and maneuverability.
• Powder-painted galvanized steel cabinet chassis.
• Protective steel louvered coil guard.
• Steel wire axial fan guard
• ECM fan motor and unique blade style allowing for smooth discharge air and quieter operation.
• 5-Years: Standard Parts Warranty
• 10-Years: After Registration

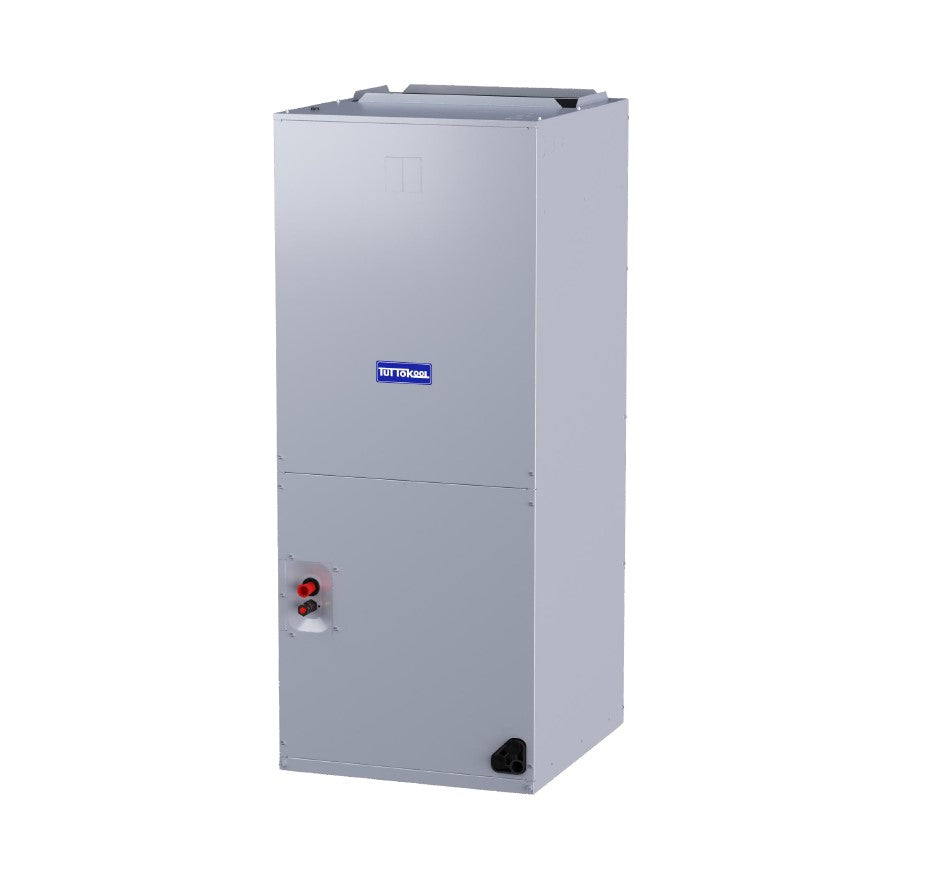

The TuttoKool Air Handler offers you high quality product at an affordable price, breaking the traditional view that HVAC equipment has to be expensive.

Standard Features:

• High heat-transfer efficiency and low static-pressure drop A-shaped coil.
• Foil-faced insulation to prevent energy loss through the cabinet.
• Factory-sealed cabinet certified to achieve 2% or less air leakage rate at 1.0 inch water column.
• Multi-stage blower Speed Control to align with varying capacity demands.
• 4-position installation: Upflow, Horizontal Right, Downflow, Horizontal Left.
• Horizontal and vertical condensate drain pans standard, primary and secondary condensate fittings.
• Field-installed electric heater kits 5, 7.5, 10, 15, 20 kW available as accessories.
• Multiple electrical entry locations.
• Dual front panel, volute and coil with slide track, TXV with threaded connection for easy maintenance.
• Integrated filter rack with toolless door access.
• Easy-to-braze copper evaporator connection.
• TXV designed for easy piston replacement.
• All-aluminum heat exchanger extends product lifetime.
• Advanced internal welding process to reduce potential corrosion.
• AHRI and ETL listed.
• Polymer condensate drain pan with UVC inhibitor to extends product lifetime.
• Fully-insulated cabinet design.
• R454B refrigerant sensor ensures safe operation.
• R454B refrigerant sensor is factory-installed, making unit suitable for more room types and applications.
• 5-Years: Standard Parts Warranty
• 10-Years: After Registration
