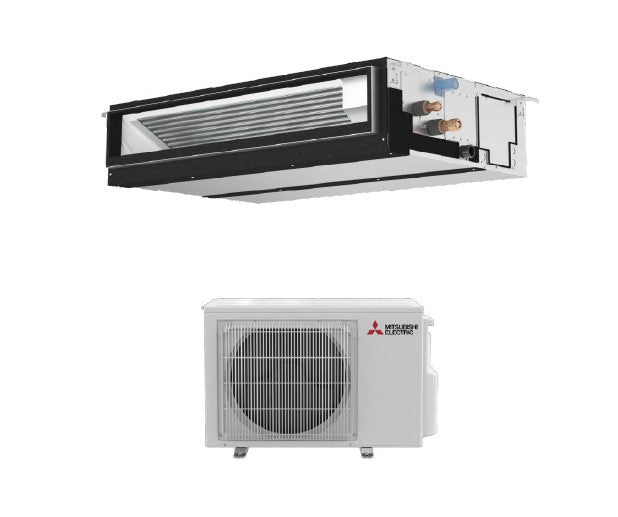

Mitsubishi 9,000 Btu R-454B 18.8 SEER2 Single Zone Concealed Ducted Mini Split Heat Pump System

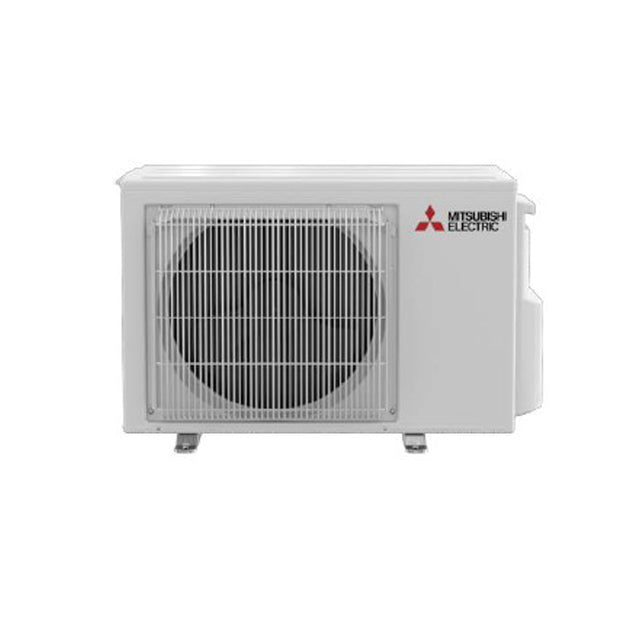

The Mitsubishi SUZ Series Mini Split Heat Pump is a single-zone outdoor unit compatible with five different indoor unit types in a 1-to-1 configuration. This high-efficiency heat pump is compatible with MLZ EZ FIT Ceiling Cassettes, SLZ Four-way Ceiling Cassettes, SVZ Multi-position Air Handlers, SEZ Low Static Horizontal-ducted Indoor Units, and PEAD Mid Static Horizontal-ducted Indoor Units.

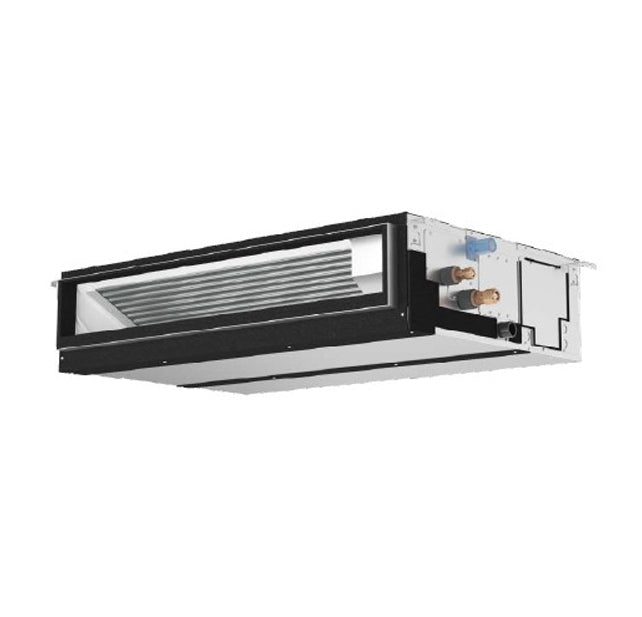

The Mitsubishi PEAD Series Mid Static intelli-AIR ducted solutions offer low capacities perfect for all size homes, up to larger capacities for light commercial applications such as offices, retail, daycares, and restaurants. Mid Static ducted solutions heat and cool large spaces or multiple rooms running from a long duct run. Easily installed in an attic, ceiling or beneath the floor, the fully-concealed whisper-quiet Mid Static intelli-AIR ducted solutions enhance air quality and offer unmatched energy-efficiencies as a variable-capacity heat pump, ensuring minimal energy is used to keep the desired indoor temperature.

***This unit does not come with a remote controller. Thermostat required for operation - Sold Separately***
***MHK2 is the Recommended Thermostat***

Standard Features:

• Auto fan speed mode
• Built-in condensate lift mechanism (up to 27-9/16”)
• Multiple control options including: comfort app, third-party interfaces and both wired and wireless controllers
• Optional FB Series filter boxes for easy access and service
• Unobtrusive ceiling-concealed design for short-run ductwork
• Wide ranging external static pressure (0.14-0.60 in. WG)
• Blue Fin Coating: An anti-corrosion treatment applied to the aluminum fins of the heat exchanger of the outdoor unit to protect against corrosion caused by salt, sulfur, and other airborne contaminants, especially in coastal and industrial areas.
• High-performance grooved piping: High-performance grooved piping for increased heat exchange efficiency
• Hot-Start Technology: Hot-Start Technology ensures the fan only activates once the heat exchanger is warm, preventing cold air blasts during start-up.
• INVERTER-driven compressor: An inverter-driven compressor generates the precise capacity needed to maintain a temperature set point.
• Joint Lap DC Motor: Innovative Joint Lap DC Motor leads to high efficiency and reliability
• Outdoor unit directed power: The outdoor unit powers the indoor unit, and should a power outage occur, the system is automatically restarted when power returns
• Pulse Amplitude Modulation technology: Pulse Amplitude Modulation technology enhances energy efficiency by adjusting the power supply to optimize compressor performance, ensuring precise capacity control and reduced energy consumption.
• Quiet operation: Quiet operation units are as quiet as a typical conversation, and most indoor units are whisper quiet.
• Single-zone: One outdoor unit connects to one indoor unit to control the comfort in a single space.

***Thermostat required for operation - Sold Separately***
***MHK2 is the Recommended Thermostat***
