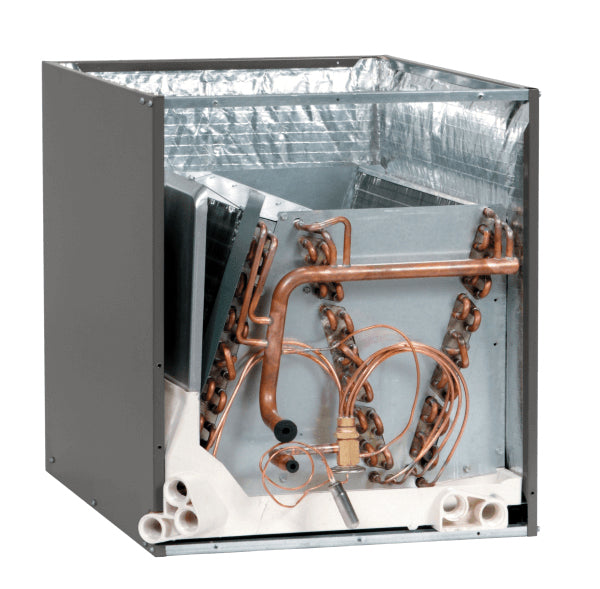

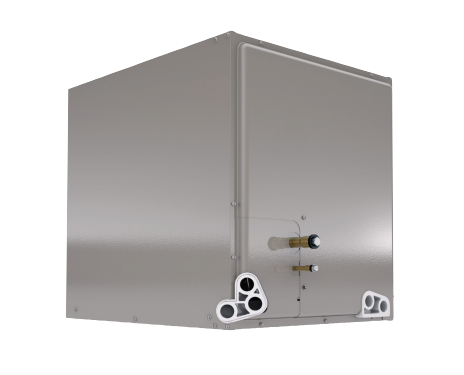

Rheem / Ruud Endeavor 5 Ton Multi-Position R-454B Cased Coil (24.5" Wide)

The Rheem / Ruud Endeavor Series Evaporator Coil is built to perform like a champion. Its all-aluminum construction makes it extra durable, allowing the coil to run better and last longer. Even the endplates are aluminum, so the unit looks as good as it runs. Every coil is factory-tested, checked for leaks and held to the highest industry standards. If it doesn't pass the test, it doesn't go in the box. We’re also proud that the coils robust design far exceeds normal operating pressures. Precise heat-control of the automated brazing oven during the brazing process means you get a quality braze joint every time. So, you can guarantee your customers one of the most durable, long-lasting products on the market today.

Standard Features:

• Rheem Indoor Furnace cased coils and replacement uncased coils are designed for use with Rheem outdoor units and are available for vertical upflow or downflow, and horizontal left or horizontal right airflow. When matched with Rheem outdoor units, the coils provide a nominal capacity range from 18,000 BTU/HR [5.24 kW] to 60,00 BTU/HR [17.6 kW]
• Constructed of aluminum fins bonded to internally grooved aluminum tubing
• Coils are tested at the factory with an extensive refrigerant leak check
• Coils have copper sweat refrigerant connections
• Feature two sets of 3/4" [14.1 mm] N.P.T. Condensate drain connections for ease of connection
• Chatleff metering device connections, at inlet and outlet of TXV or EEV and equalizer connections (TXV only)
• Approved for system application with variety of Rheem outdoor units
• Condensate drain pan is constructed of high grade, heat resistant, corrosion free thermal-set material
• Compatible with Germicidal Light System (UV resistant)
• Bi-Directional airflow eliminates the need to switch any internal components from horizontal left to right
• Unique drain pan design maximizes application flexibility and condensate removal.
• N-Coil design maximizes performance and minimizes height required at installation
• Coils are AHRI certified for system application with a variety of Rheem outdoor units
