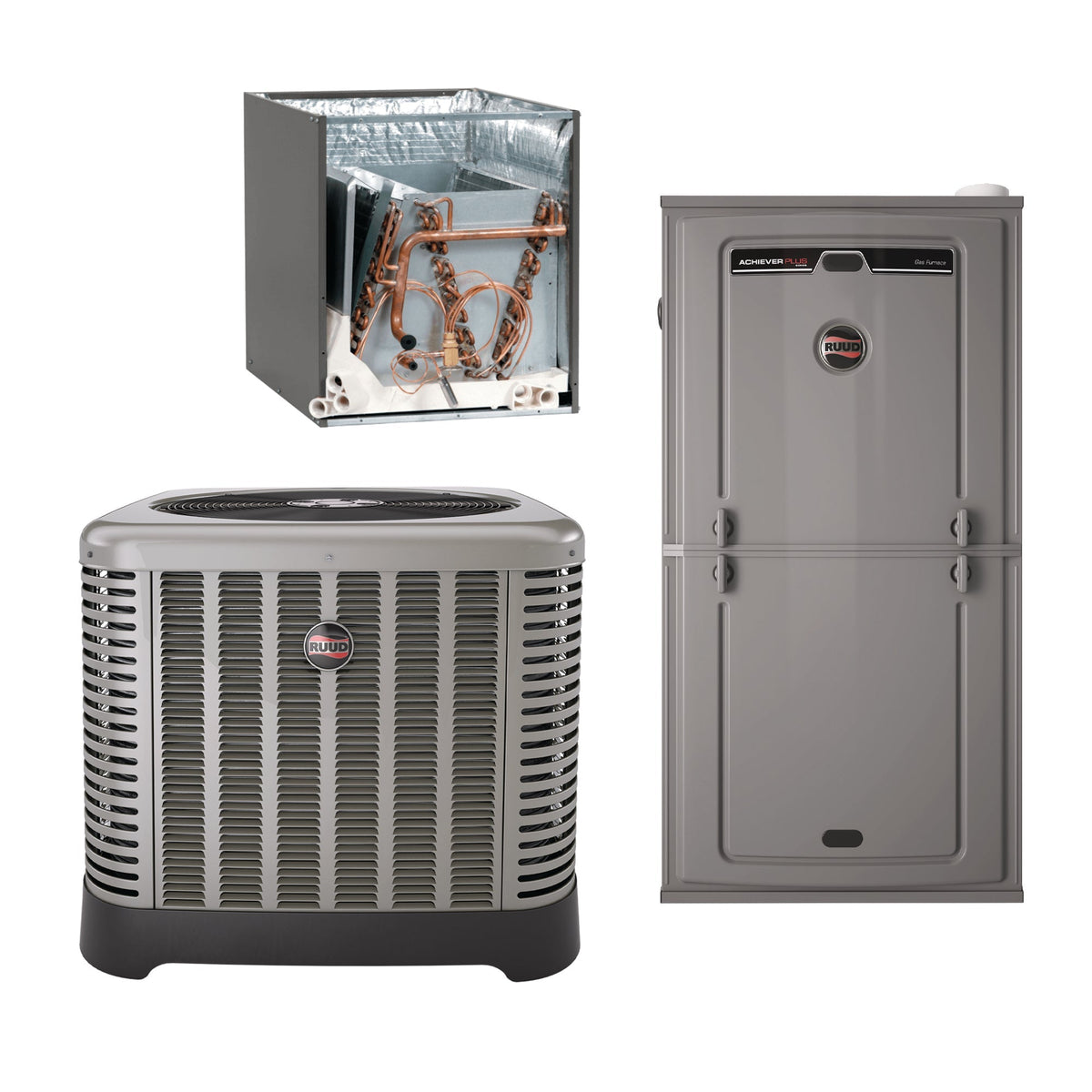

Rheem / Ruud Endeavor 3.5 Ton 15.2 SEER2 R-454B 100,000 Btu 80% Afue Gas System (Upflow)

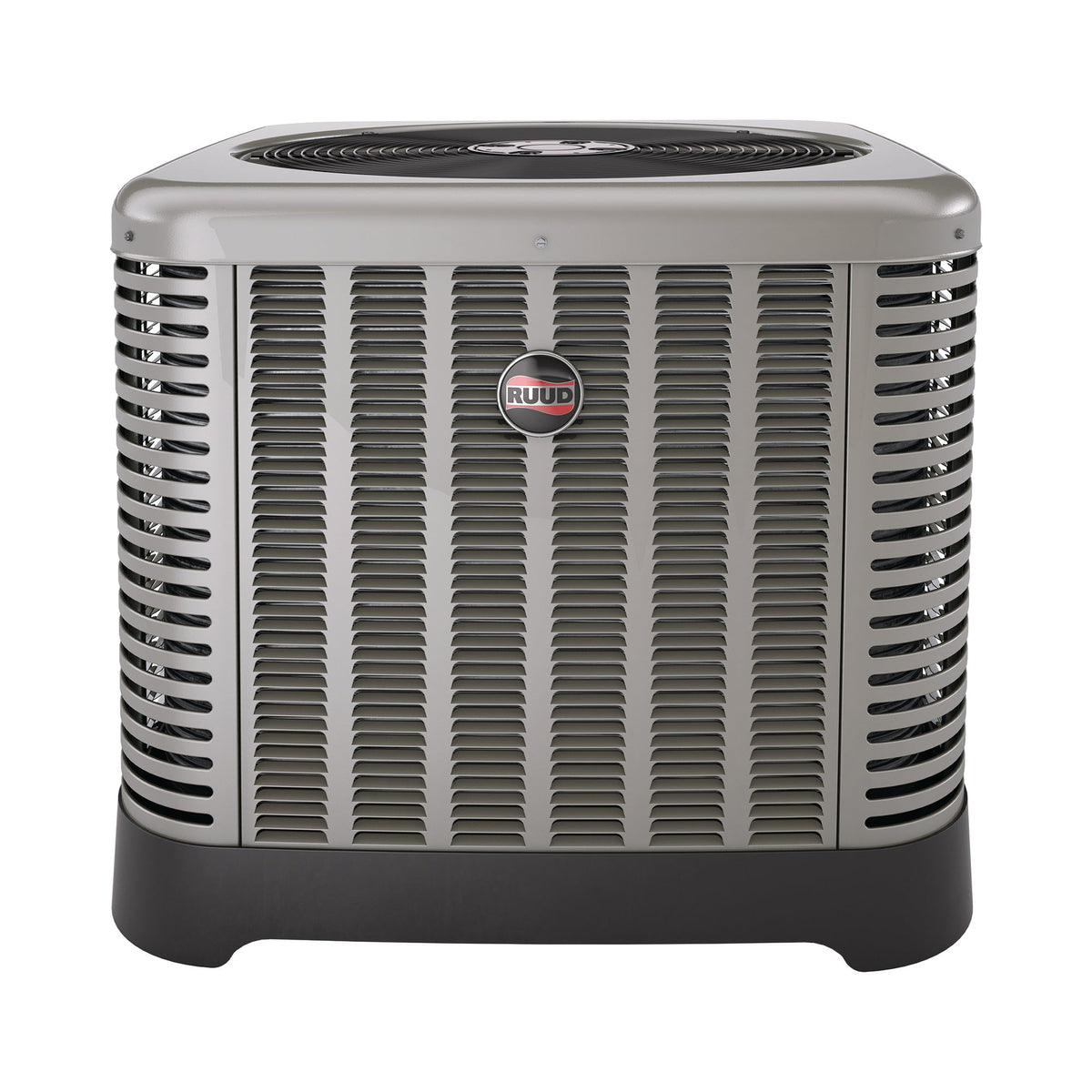

The Rheem RA14AY Air Conditioner offers the solid technology and energy-saving performance you've come to expect from Rheem. It's also quiet, so you won't give your indoor home comfort a second thought. Our Classic Series includes features that help fight corrosion, reduce leaks and enhance the overall strength of your air conditioner so you can be confident in the way it performs. A smart, efficient design makes the Rheem Air Conditioner one of your best options for staying cool inside. Each new unit includes a generous list of features that work together to bring you quiet, efficient and reliable indoor comfort.

Standard Features:

• Efficient Cooling up to 15.2 SEER2/11.7 EER2
• 7mm Condenser Copper Coil: Requires less refrigerant allowing for a smaller and lighter footprint while enhancing reliability
• Swept Wing Fan Technology1: Features quieter operation and improved unit acoustics
• PlusOne® Triple Service Access: 15 in. wide, industry leading corner service access, two fastener, removable corner and individual louver panels — makes repairs easier and faster
• Designing for Sustainability with Low GWP: For 2025, the Environmental Protection Agency (EPA) has set a global warming potential (GWP) limit of 700 for refrigerant used in heating and cooling systems. This new requirement will result in a 78%2 lower GWP than previous-generation refrigerants — with only minimal changes to system installation. For us, this is another step toward our continued sustainability goal of reducing greenhouse gas emissions, while still delivering an exceptional level of energy efficient, dependable comfort
• PlusOne® Refrigerant Detection System™3: An integrated one-box, patented design featuring the A2L sensor and mitigation board, offering easier commissioning with a single component and simplified wiring configuration, compatibility with any 24V thermostat application and system protection by automatically pausing outdoor unit operation — if excess refrigerant is detected

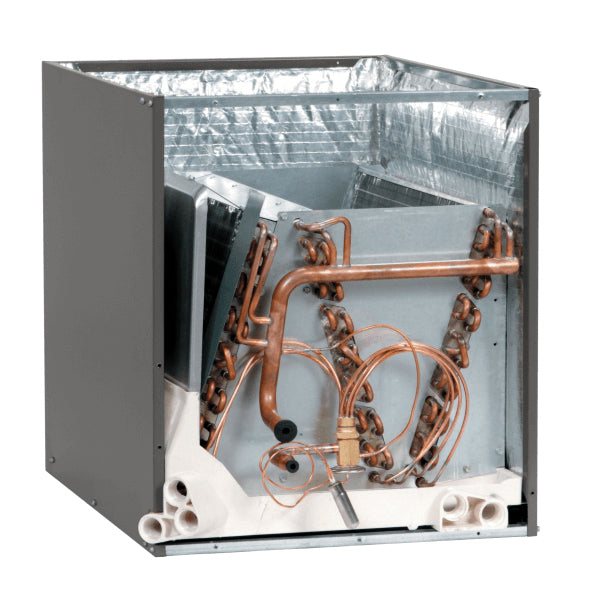

The Rheem / Ruud Endeavor Series Evaporator Coil is built to perform like a champion. Its all-aluminum construction makes it extra durable, allowing the coil to run better and last longer. Even the endplates are aluminum, so the unit looks as good as it runs. Every coil is factory-tested, checked for leaks and held to the highest industry standards. If it doesn't pass the test, it doesn't go in the box. We are also proud that the coils robust design far exceeds normal operating pressures. Precise heat-control of the automated brazing oven during the brazing process means you get a quality braze joint every time. So, you can guarantee your customers one of the most durable, long-lasting products on the market today.

Standard Features:

• Rheem Indoor Furnace cased coils and replacement uncased coils are designed for use with Rheem outdoor units and are available for vertical upflow or downflow, and horizontal left or horizontal right airflow. When matched with Rheem outdoor units, the coils provide a nominal capacity range from 18,000 BTU/HR [5.24 kW] to 60,00 BTU/HR [17.6 kW]
• Constructed of aluminum fins bonded to internally grooved aluminum tubing
• Coils are tested at the factory with an extensive refrigerant leak check
• Coils have copper sweat refrigerant connections
• Feature two sets of 3/4" [14.1 mm] N.P.T. Condensate drain connections for ease of connection
• Chatleff metering device connections, at inlet and outlet of TXV or EEV and equalizer connections (TXV only)
• Approved for system application with variety of Rheem outdoor units
• Condensate drain pan is constructed of high grade, heat resistant, corrosion free thermal-set material
• Compatible with Germicidal Light System (UV resistant)
• Bi-Directional airflow eliminates the need to switch any internal components from horizontal left to right
• Unique drain pan design maximizes application flexibility and condensate removal.
• N-Coil design maximizes performance and minimizes height required at installation
• Coils are AHRI certified for system application with a variety of Rheem outdoor units

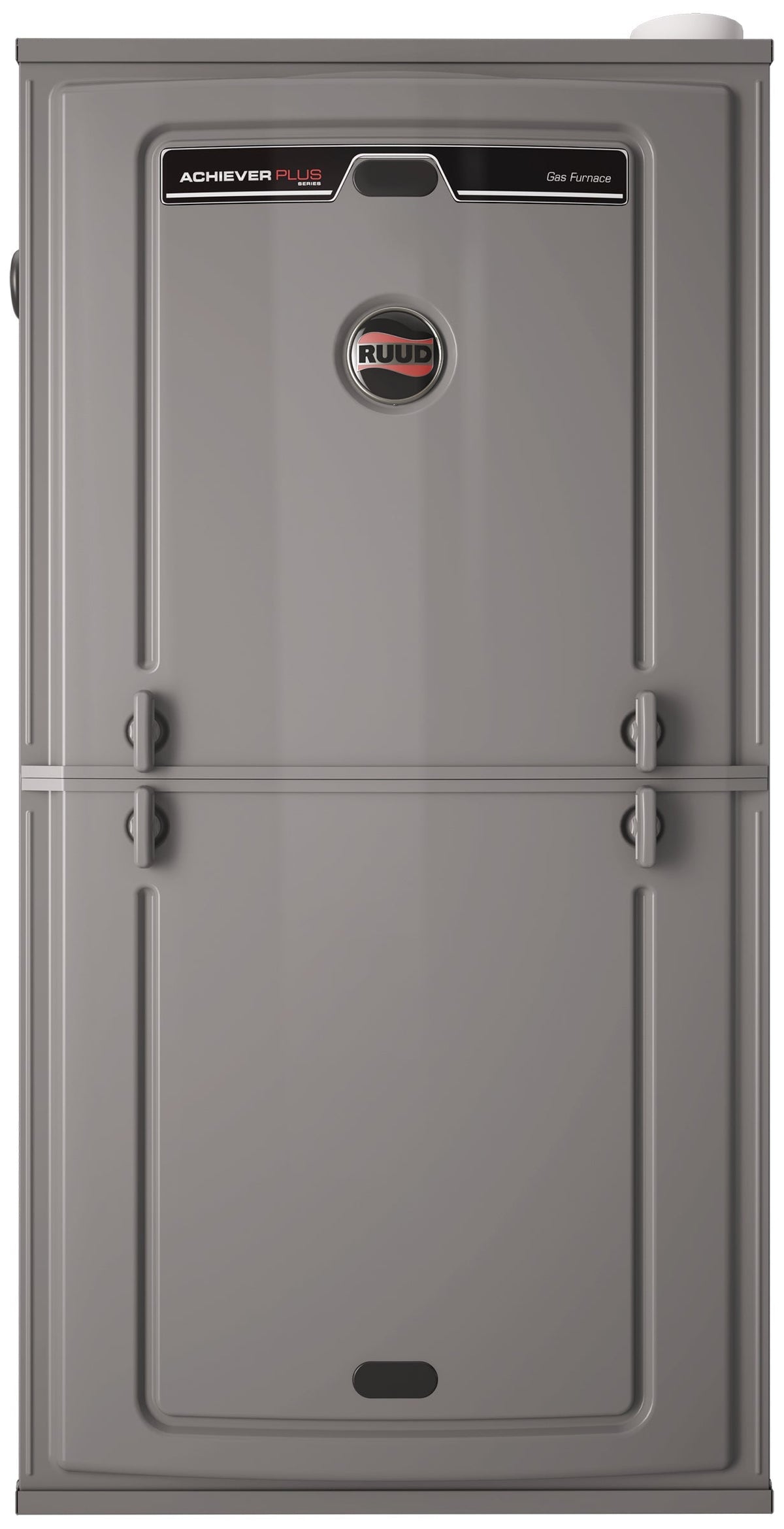

The Rheem R801T Gas Furnace was designed with industry-exclusive features for years of worry-free comfort. Its also quiet, so you can stay focused on what matters most. The Rheem Gas Furnace was developed using our 360 + 1 design philosophy, which means every detail of the product is meticulously evaluated from every angle. We consider the work that goes into installing and servicing our products, as well as how we can deliver the very best homeowner experience. And then we take it a step further. That's 360 degrees +1. And that's why you can count on your gas furnace to bring you and your family years of comfort.

Standard Features:

• PlusOne Diagnostics, 7-segment LED for quick and easy service
• PlusOne Ignition System, direct spark ignition (DSI)
• Low profile 34" cabinet design
• Removable heat exchanger for improved serviceability
• Aluminized steel construction provides maximum
• corrosion resistance and thermal fatigue reliability
• Hemmed cabinet and door edges
• Blower shelf design ensures serviceability in all furnace orientations
• AHRI Certified
• CSA Certified
• 20-Year limited heat exchanger warranty
• Multi-speed constant torque blower motor
• Low speed continuous fan option
• Gas connection size for all models is 1/2" N.P.T
• Power and self test diagnostics
• Humidifier connections
• Electronic air cleaner connections
