Mitsubishi 42,000 Btu 19.3 SEER2 5-Zone Ductless Mini Split Heat Pump Condenser (Build-Your-Own System)

**PLEASE BE ADVISED** This is highly specialized HVAC equipment and should only be purchased by or after consulting with a licensed technician. The AC Outlet cannot be held liable for any equipment that has been purchased incorrectly.  PLEASE NOTE: The BTU capacity of a Multi-Zone system is measured by the sum of ALL AIR HANDLERS, not by the rated capacity of the condenser.

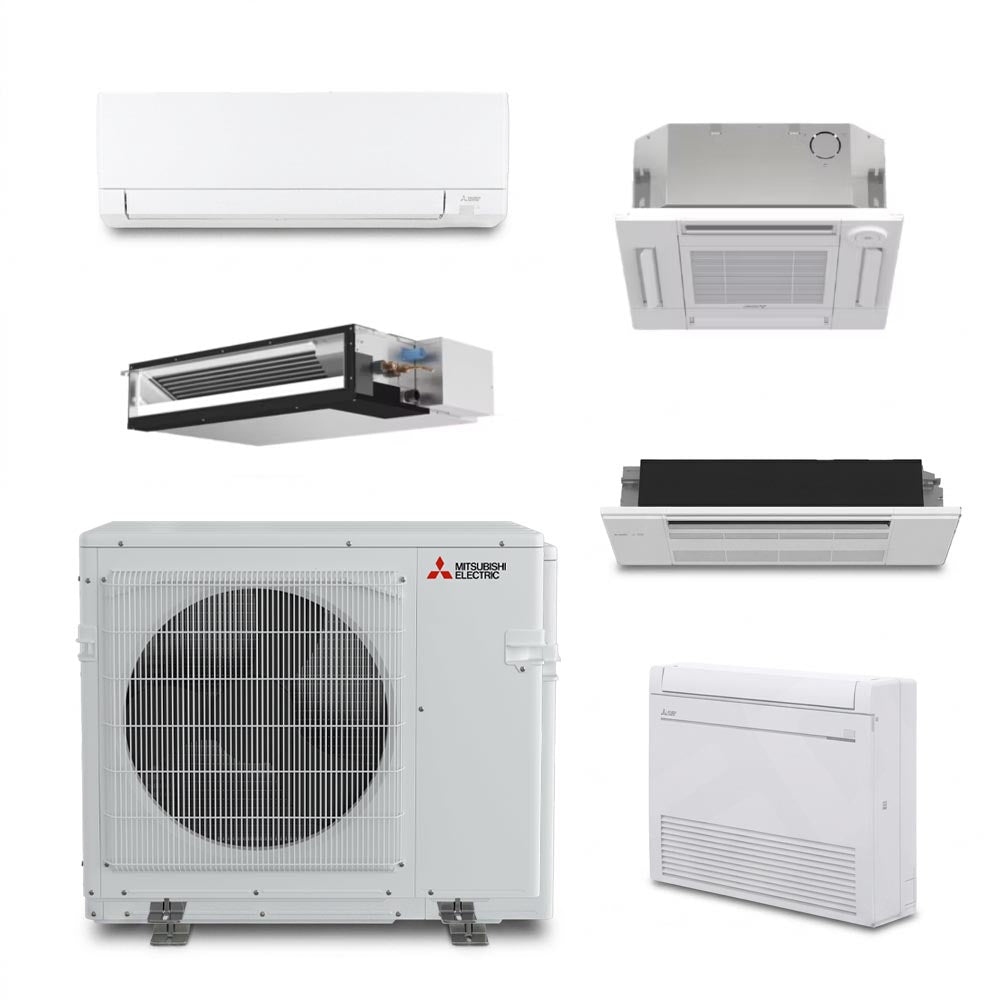

The Mitsubishi MXZ Series Mini Split Heat Pump System is the ultimate heavy-duty residential and light commercial multi-room solution, engineered to deliver precise comfort to up to 5 independent zones from a single outdoor footprint. Delivering a robust 42,000 BTUs of inverter-driven capacity, this advanced M-Series condenser serves as the eco-friendly, low-GWP upgrade designed specifically for next-generation R-454B refrigerant. Best of all, you can mix and match the indoor air handler styles as required by your property's architectural layout. Compatible indoor configurations can include any combination of the following: Ductless Wall Mounted (GX/FX Series), Horizontal Ducted (PEAD Series), Ceiling Recessed Cassettes (MLZ/SLZ Series), and Floor Standing units (MFZ Series). Mix-matching indoor units offers you a wide range of targeted heating and cooling profiles, giving you complete environmental control over individual bedrooms, additions, or offices. Mitsubishi offers these indoor styles in a wide range of capacities, making sure the MXZ multi-room system has the right solution for you. Please see the bottom portion of this description for the possible Btu combinations.

Operation Performance Outdoor Unit:

• Minimum of two Indoor Units must be connected to the MXZ-5D42NL outdoor condenser.
• Maximum of five Indoor Units can be connected to support up to 5 completely independent climate zones.
• Minimum installed capacity cannot be less than 12,000 Btu, with a massive maximum connected capacity allowance of up to 54,000 Btu.
• System features intelligent zone control and can run efficiently with only one indoor Unit turned on.
• Indoor Units can be All Ducted, Non-Ducted, or a Mixed Combination of Ducted and Non-Ducted styles depending on your installation requirements.

SEER2 / Efficiency Ratings Based on Style of Indoor Chosen:

• All Ductless (Non-Ducted): Up to 18.00 SEER2 / 10.40 EER2 / 9.50 HSPF2
• Mixed Configuration: Up to 16.70 SEER2 / 9.45 EER2 / 8.95 HSPF2
• All Ducted: Up to 15.40 SEER2 / 8.50 EER2 / 8.40 HSPF2

Please Read T-stats & Controllers:

• Wireless Remote Controllers are Included natively with MSZ-GX, MSZ-FX, and MFZ floor-mounted indoor units.
• Wireless Remote Controllers are Not Included with PEAD, SEZ, or SLZ ceiling cassette indoor units.
• A compatible Wall-Wired Thermostat (such as the Simple MA or Deluxe MA) or a Wireless Thermostat interface (like the MHK2) must be added separately for PEAD, SEZ, and SLZ series operations.

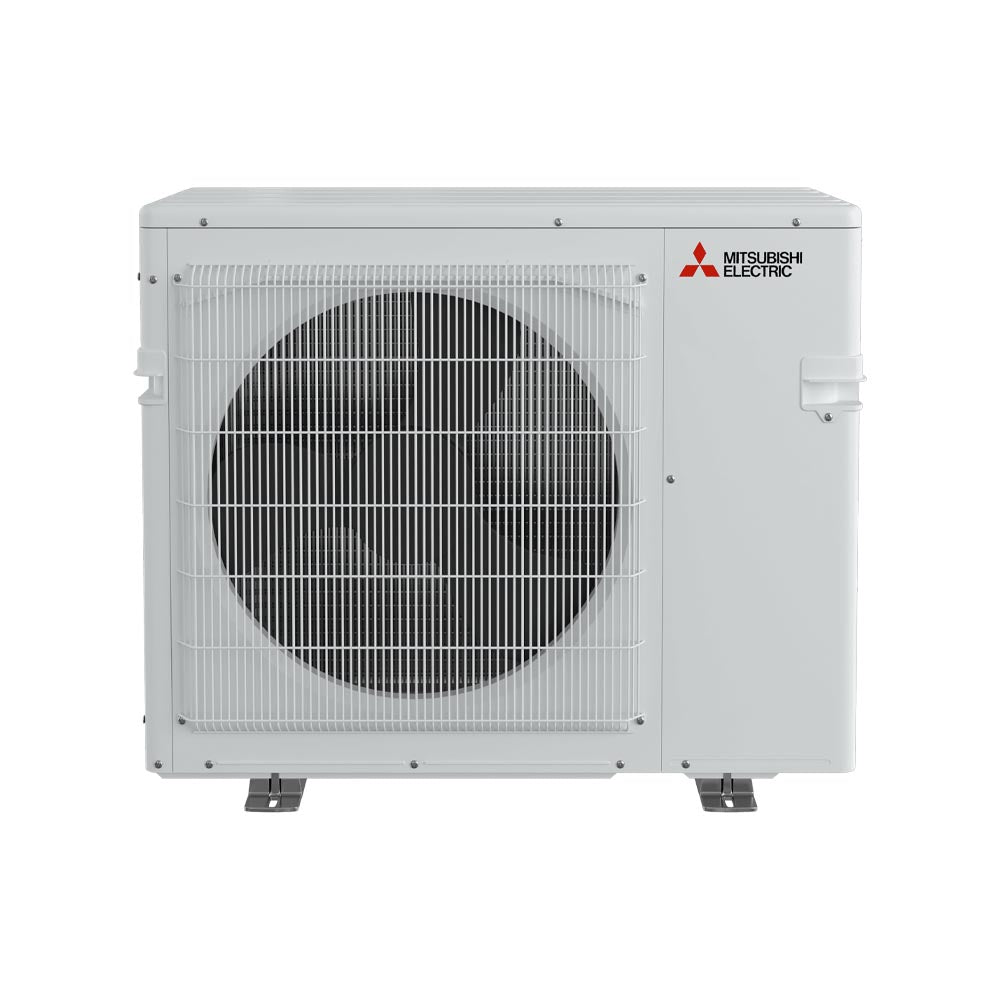

General Features For Outdoor Unit:

• Variable-speed INVERTER-driven twin-rotary compressor ensures rapid temperature adjustment and exceptional partial-load energy savings
• Blue Fin anti-corrosion coating applied to the outdoor heat exchanger for enhanced coil protection and extended lifespan
• Seacoast protection rated for 2,000 hours of salt spray environment testing per ASTM B117 standards
• Advanced safety controls including compressor overcurrent detection, high-pressure protection, and fan motor overheating protection
• Auto restart functionality following a power outage to safely restore settings automatically
• Ultra-quiet outdoor operation engineered to run as low as 59 dB(A) at maximum load
• Compact, small-chassis side-discharge design allows for flexible wall-mount brackets or floor-pad installation pathways

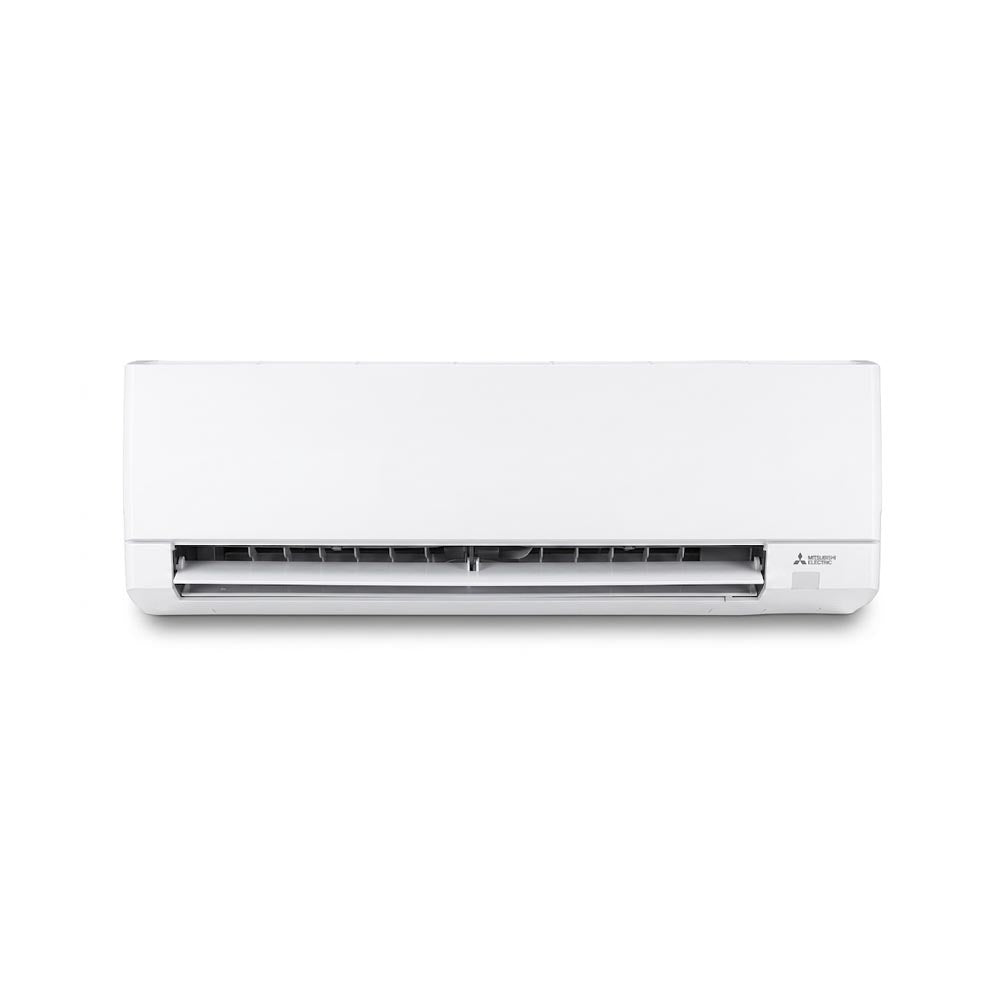

MSZ-GX Wall Mounted General Features:

• Ergonomic wireless remote controller is included in the box
• Slim, modern wall-mount profile designed to blend seamlessly into any room decor
• Indoor unit is powered directly from the outdoor condenser using 14 AWG 4-wire A-Control wiring
• Multi-stage fan speeds (Quiet, Low, Medium, High, and Super High) with smart Auto-fan speed control adjustments
• Eco-comfort performance parameters engineered for near-silent, draft-free indoor environments

MSZ-FX Wall Mounted General Features:

• Premium wireless handheld controller is included
• Sleek, updated compact aesthetic featuring a premium Dual Barrier Coating on internal components to prevent dirt and dust buildup
• Triple Action Filtration System combines advanced enzyme, deodorizing, and hybrid filters to neutralize household allergens and odors
• Integrated 3D i-see Sensor™ automatically scans the thermal signature of the room to adjust output based on floor temperature and human occupancy
• Powerful Mode function permits the system to temporarily run at an accelerated fan speed to bring an underserved room to the ideal comfort level quickly

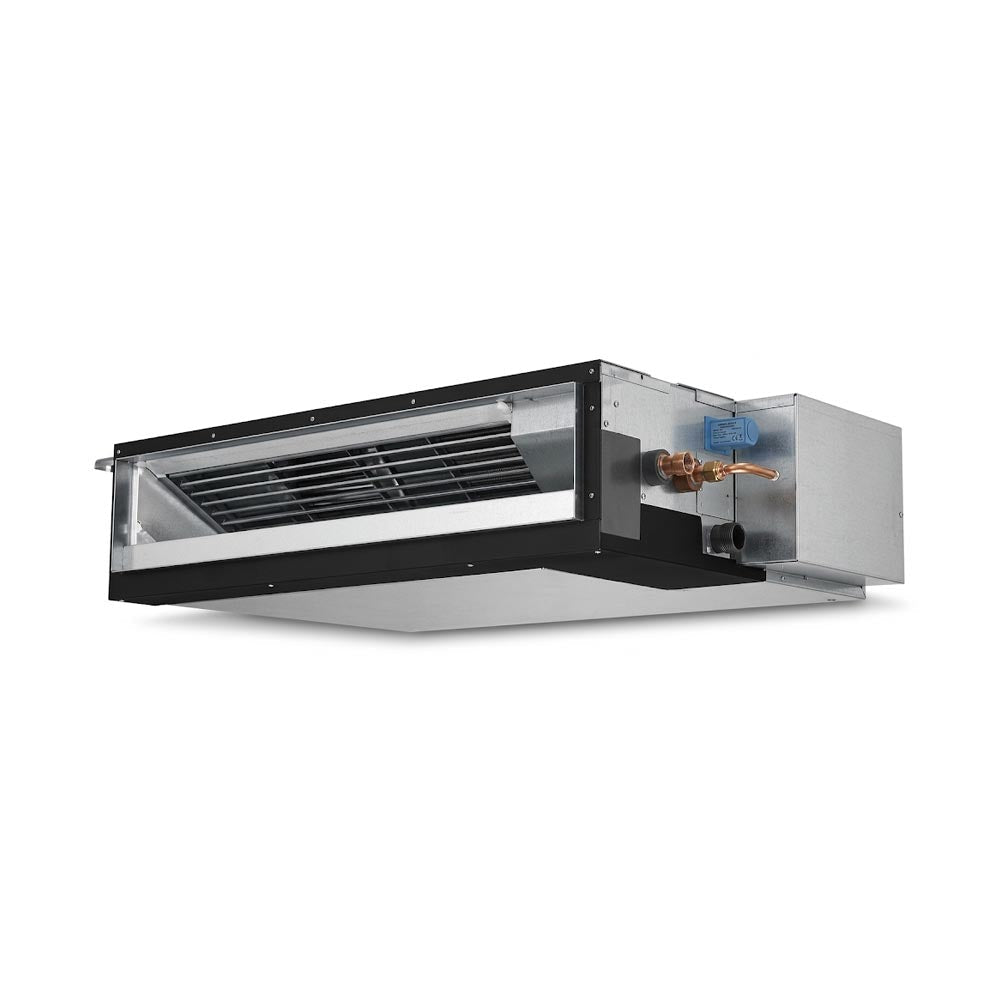

PEAD / SEZ Horizontal Ducted General Features:

• Thermostat is not included and must be purchased separately
• Concealed horizontal profiles engineered for short-run ductwork, drop ceilings, or attic installations
• Ultra-thin chassis construction minimizes the clearance space required above drywall
• Built-in high-performance drain mechanism for seamless condensate water removal
• Quiet operation parameters running as low as 23 dBA on low fan selections
• Indoor blower motor powered safely from the outdoor MXZ line via integrated A-Control connectivity

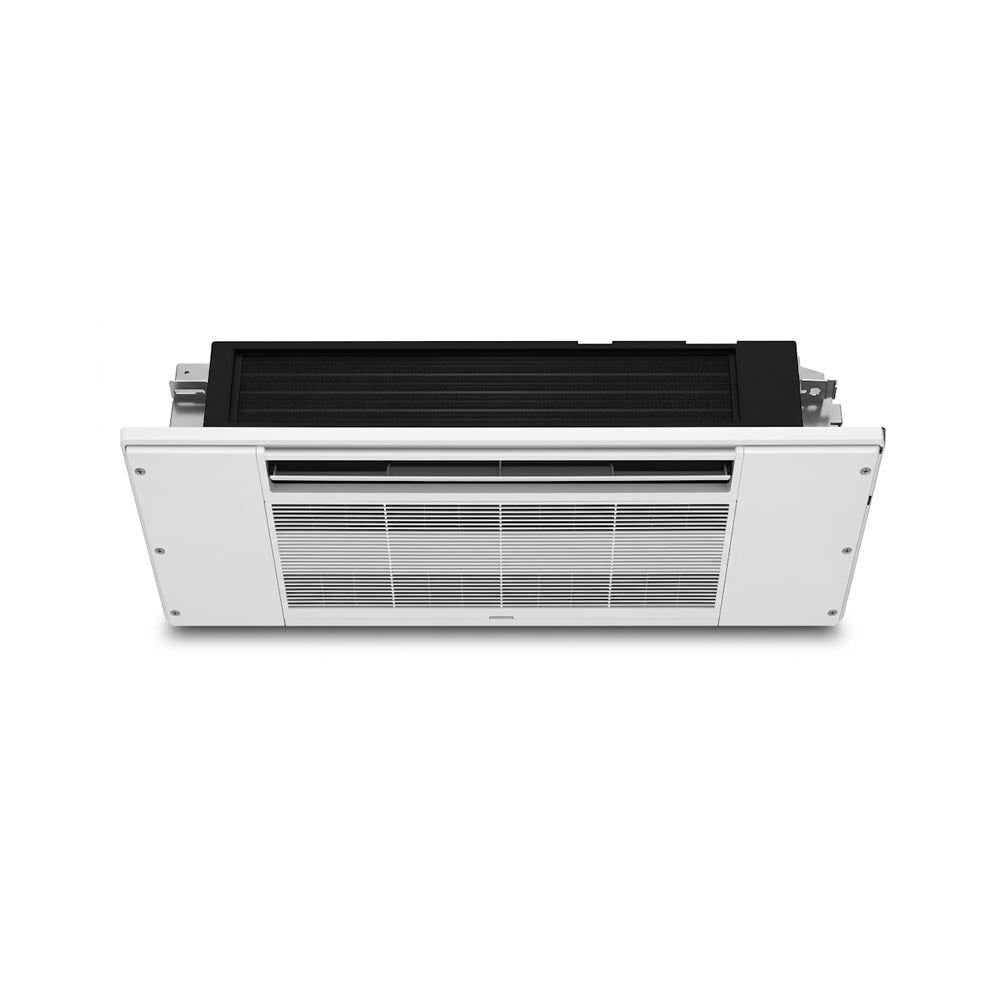

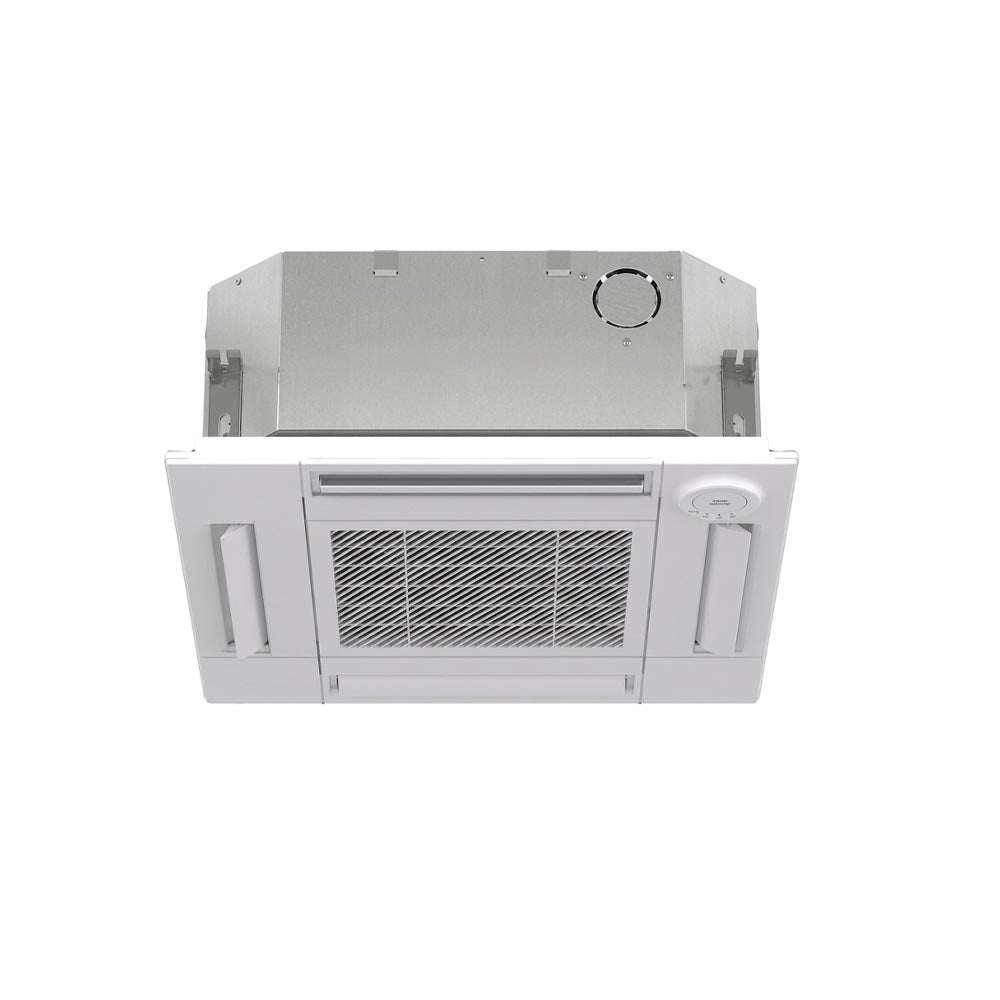

SLZ / MLZ Ceiling Cassette General Features:

• Thermostat / Controller and architectural Trim Plate are not included and must be added as extra installation options
• Recessed ceiling placement options provide a flush, clean alternative to wall-mounted units
• Built-in dynamic condensate lift mechanism handles elevation differences for drainage lines easily
• Wide, multi-directional airflow patterns optimize thermal distribution across expansive or rectangular rooms
• Integrated fresh air ventilation intake knockout designed into the chassis structure
• SLZ requires the matching SLP15AAUW architectural grille panel (Please See Options) for proper completion

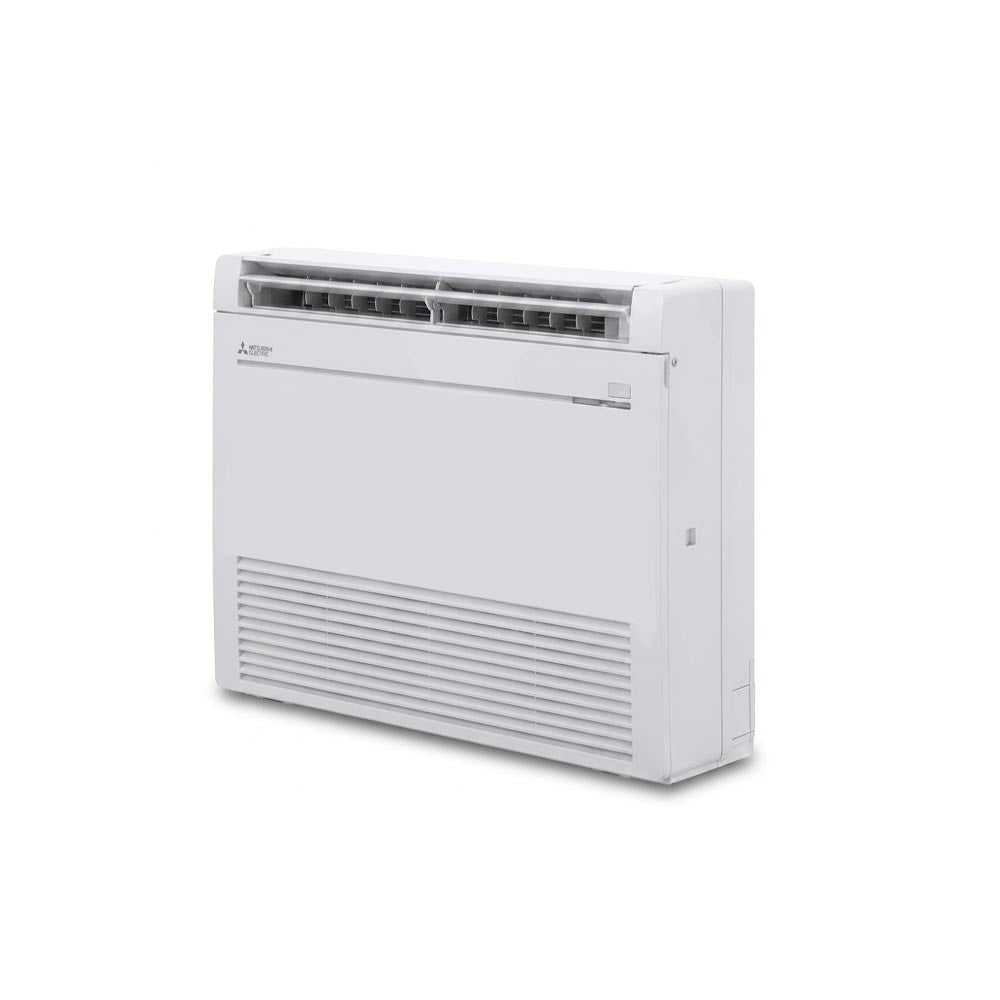

MFZ Low Wall or Floor Standing General Features:

• Versatile styling allows the unit to be floor-standing or partially recessed directly into standard framing walls
• Wireless remote controller is included with the factory shipment
• Dual-vane distribution system utilizes a lower supply outlet in heating mode to quickly warm floors and eliminate cold spots
• Multi-stage filtration includes standard Hybrid Catechin Prefilters and advanced Anti-allergy Enzyme Filters
• A-Control power and communication mapping driven entirely from the single outdoor unit footprint

Possible Btu Combinations:

• Please consult the official Mitsubishi MXZ-5D42NL Operational Submittal Sheet or Port Distribution Charts for approved multi-zone pairing capacities.
