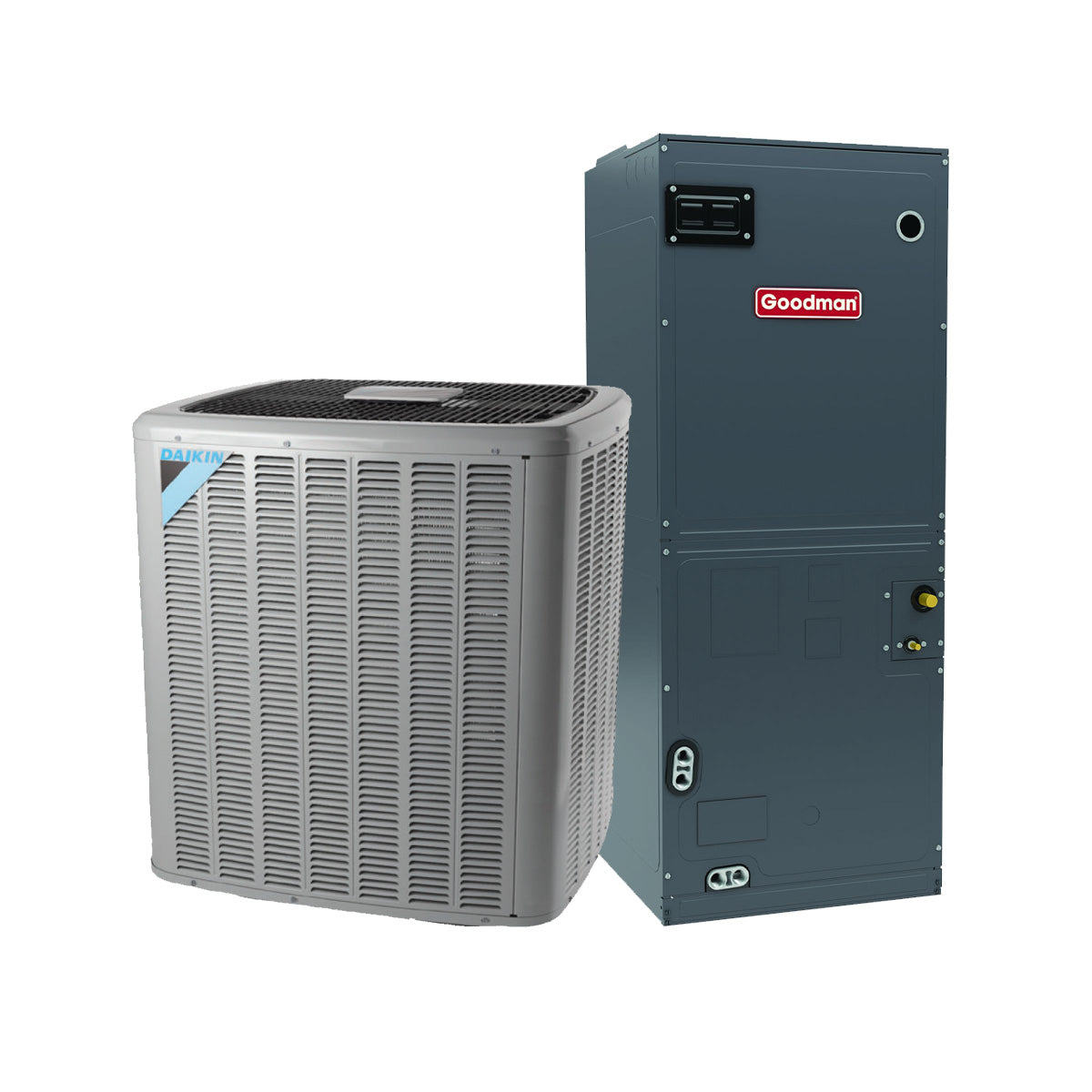

Daikin 3 Ton 15.2 SEER2 R-32 Commercial Heat Pump System (460V)

**Due to the specialized nature of this equipment manufactured to specific job requirements (i.e. voltage, btu, etc.) returns will NOT be accepted on any Commercial Equipment sales. Please be sure to check your application specifications carefully prior to placing your order. ALL SALES ARE FINAL.**

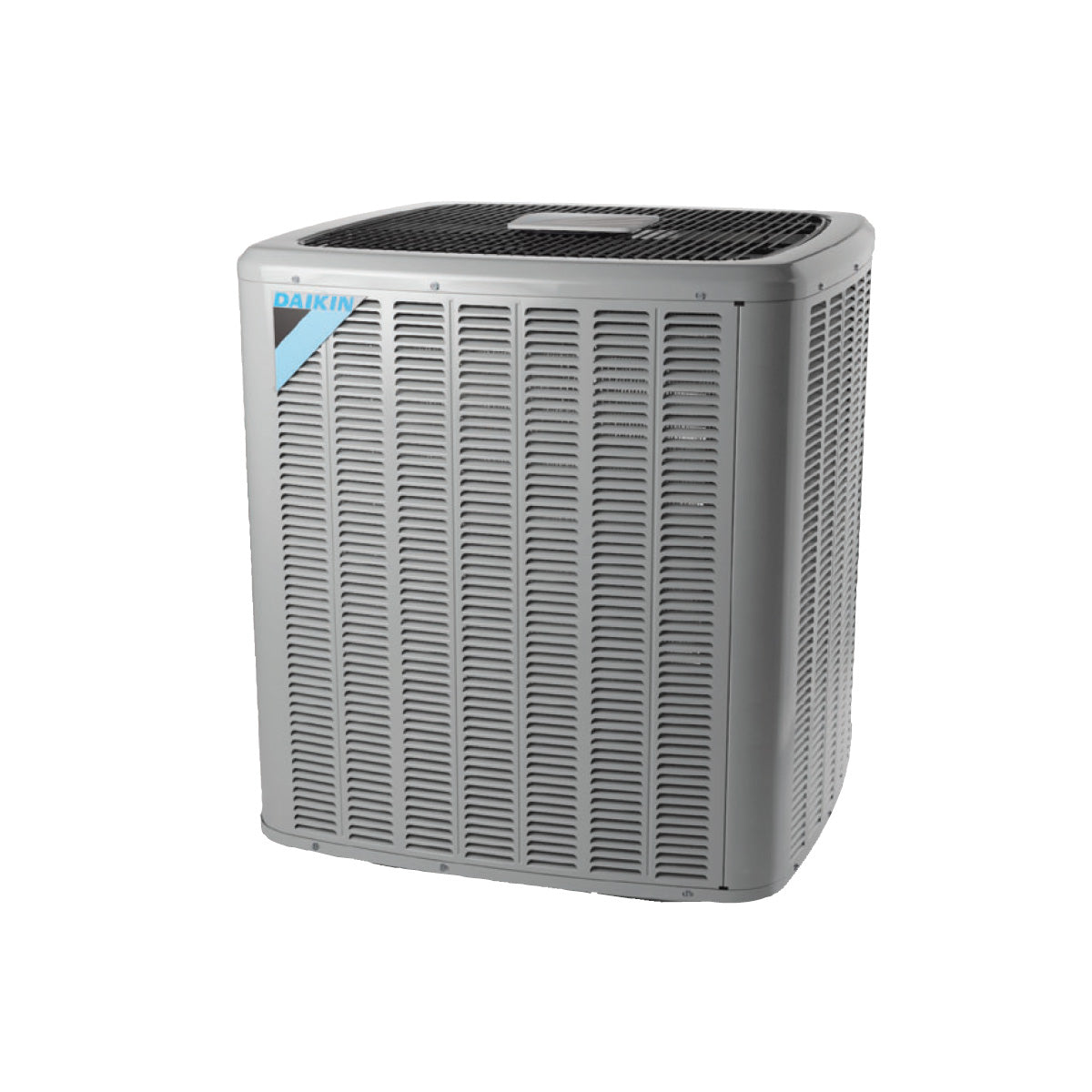

The Daikin Commercial DH4SEA Commercial Air Conditioner uses the A2L compliant R-32 refrigerant and features operating sound levels that are among the best in the heating and cooling industry. The cabinet features a powder-paint finish over heavy-gauge galvanized steel that provides premium durability and improved UV protection. Designed for ground-level or rooftop mount, the base pan elevates the unit above the slab to provide excellent water drainage and keep the coil away from debris that can collect inside the unit. The unit’s attractive louvered metal guard protects the coil from damage and strengthens the unit.

Standard Features:

• High-efficiency Copeland scroll compressor
• Advanced Copeland CoreSense technology
• Enhanced aluminum fin coil with 5mm diameter copper tubes in 3-ton
• Enhanced aluminum fin coil with 7mm diameter copper tubes in 4.0- to 5.0-ton
• Time-delay technology to ensure quiet reliable defrost
• Factory-installed bi-flow liquid line filter drier
• Factory-installed suction line accumulator
• Factory-installed compressor crank case heater
• Factory-installed high capacity muffler
• High- and low-pressure switches
• Service valves with sweat connections and easy access to gauge ports
• Fully enclosed contactor with lug connection
• Fully charged for 15’ of tubing length
• High density foam compressor sound blanket on 1.5-2.0T
• Capacitors with extended life
• AHRI Certified; ETL Listed

Cabinet Features:

• Removable grille-style top design compliant with UL 60335-2-40
• Venturi for increased velocity of airflow
• Custom Nickel Gray powder- paint finish with 500- hour salt- spray approval
• Steel louver coil guard with rust-resistant screws
• Wire fan discharge grille
• Steel louver coil guard
• Rust-resistant screws
• Top and side maintenance access
• Single-panel access to controls with space provided for field-installed accessories

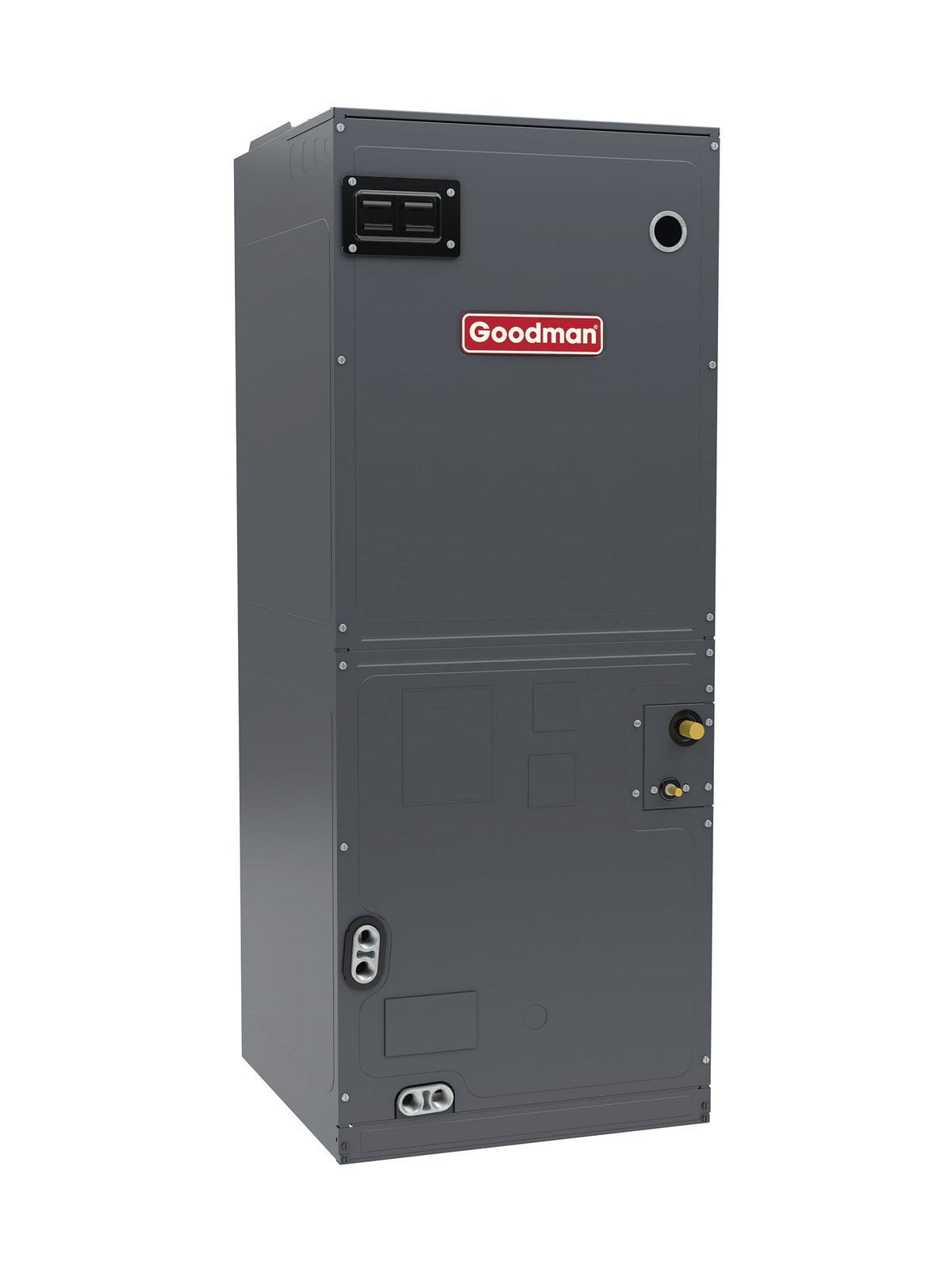

The Goodman AMST Air Handler is now available! This unit is compatible with R-32 units.

Standard Features:

• Internal factory-installed thermal expansion valves for cooling and heat pump applications
• Direct drive, multi-speed ECM blower motor
• All-aluminum evaporator coil
• Coil mounting track for quick repositioning
• Optimized for use with R-32 refrigerant
• Cabinet air leakage less than 2.0% at 1.0 inch Hâ‚‚O when tested in accordance with ASHRAE standard193
• Cabinet air leakage less than 1.4% at 0.5 inch Hâ‚‚O when tested in accordance with ASHRAE standard193
• AHRI certified; ETL listed
• Rigid SmartFrame cabinet
• Horizontal or vertical configuration capabilities
• 21" depth for easier attic access
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Screw-less sides and back helps to reduce con- densation when installed in humid locations
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Glue-less cabinet insulation retention
• Tool-less filter access
