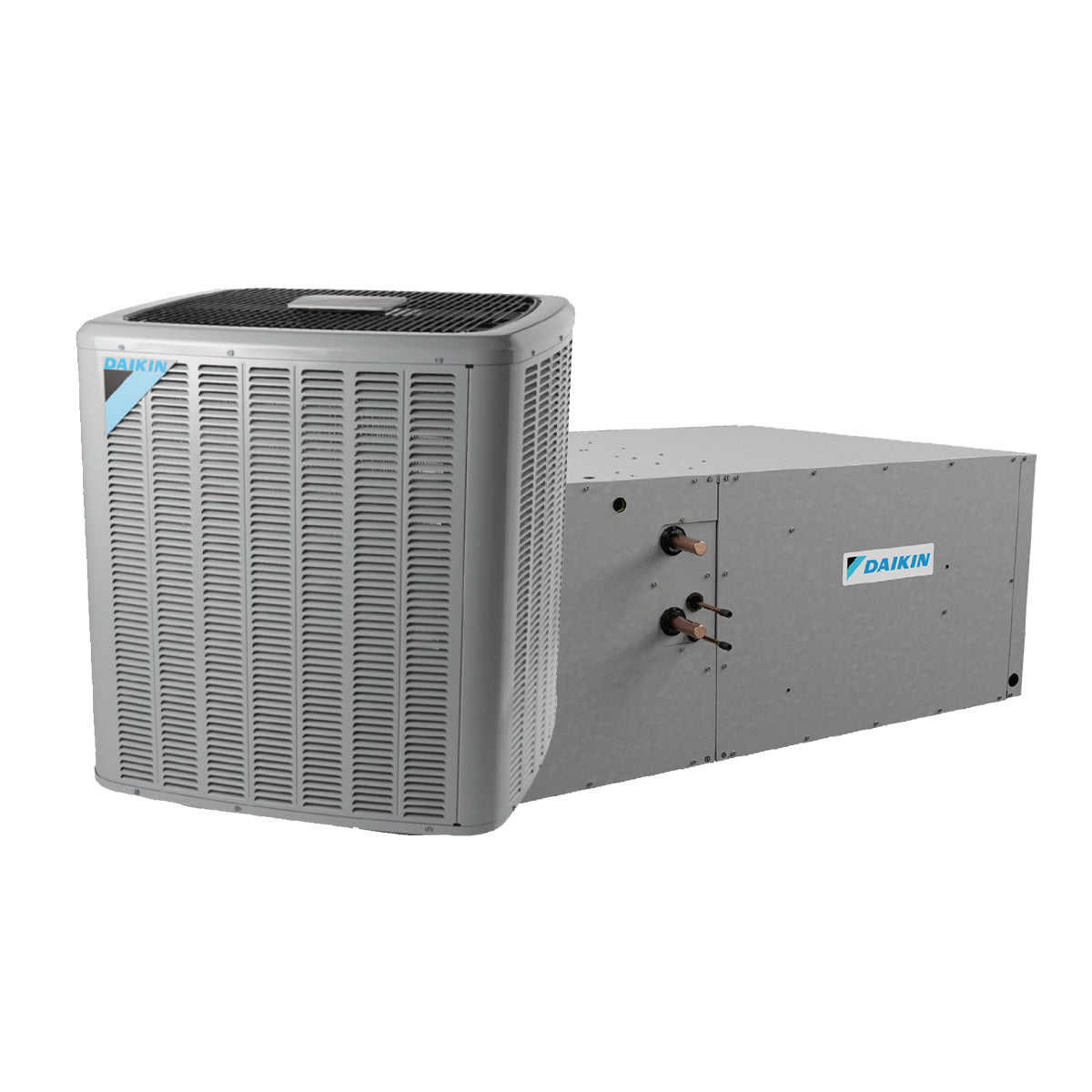

Daikin 7.5 Ton 12.3 EER / 16.4 IEER R-32 Commercial Air Conditioning System (460V)

**Due to the specialized nature of this equipment manufactured to specific job requirements (i.e. voltage, btu, etc.) returns will NOT be accepted on any Commercial Equipment sales. Please be sure to check your application specifications carefully prior to placing your order. ALL SALES ARE FINAL.**

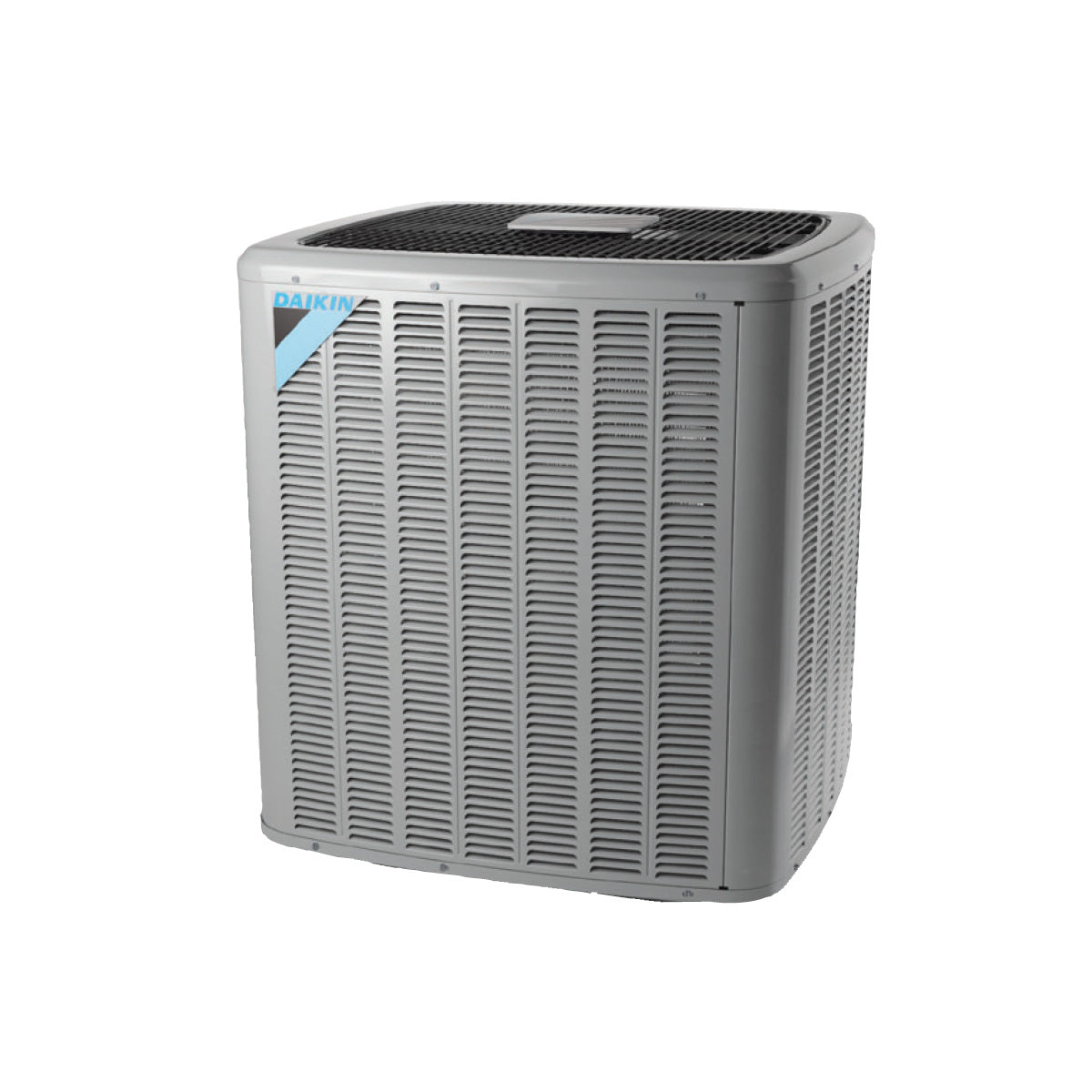

The Daikin Commercial DC6T Commercial Air Conditioner cabinet features a powder-paint finish over heavy-gauge galvanized steel that provides premium durability and improved UV protection. Designed for ground-level or rooftop mount, the base pan elevates the unit above the slab to provide excellent water drainage and keep the coil away from debris that can collect inside the unit. The unit’s attractive louvered metal guard protects the coil from damage and strengthens the unit.

Standard Features:

• Two-Stage tandem compressor design
• Quiet operating top discharge
• High-efficiency copper tube / aluminum fin coil
• Brass liquid and suction service valves
• High- and low-pressure switches
• Factory-installed filter drier
• Complies with ASHRAE 90.1
• AHRI Certified; ETL Listed

Cabinet Features:

• Innovative sound control top design
• Steel louver coil guard protects the coil from damage and adds strength to unit
• Bottom pan rails elevate unit above slab
• Heavy-gauge galvanized-steel cabinet
• Attractive Nickel Gray powder-paint finish
• When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

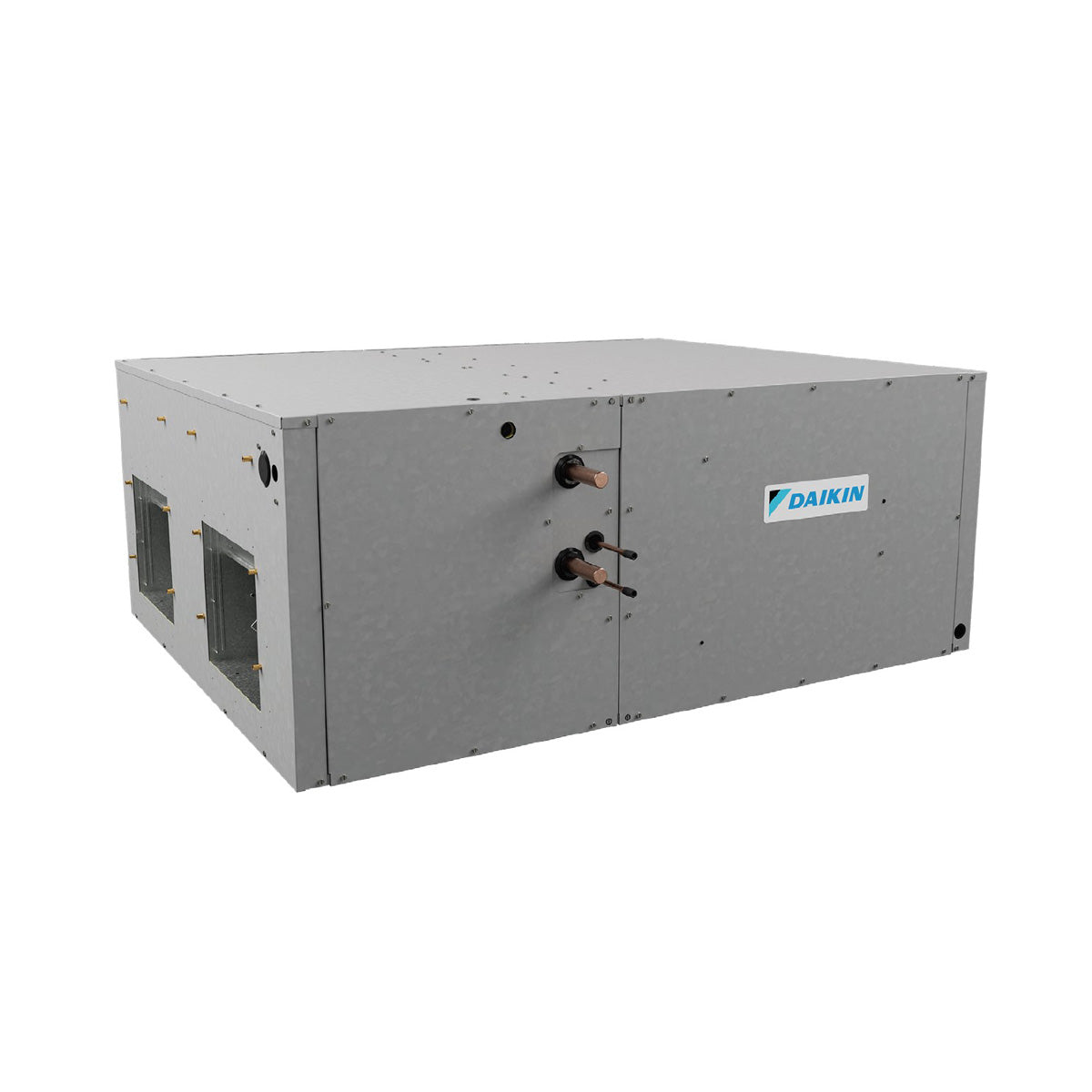

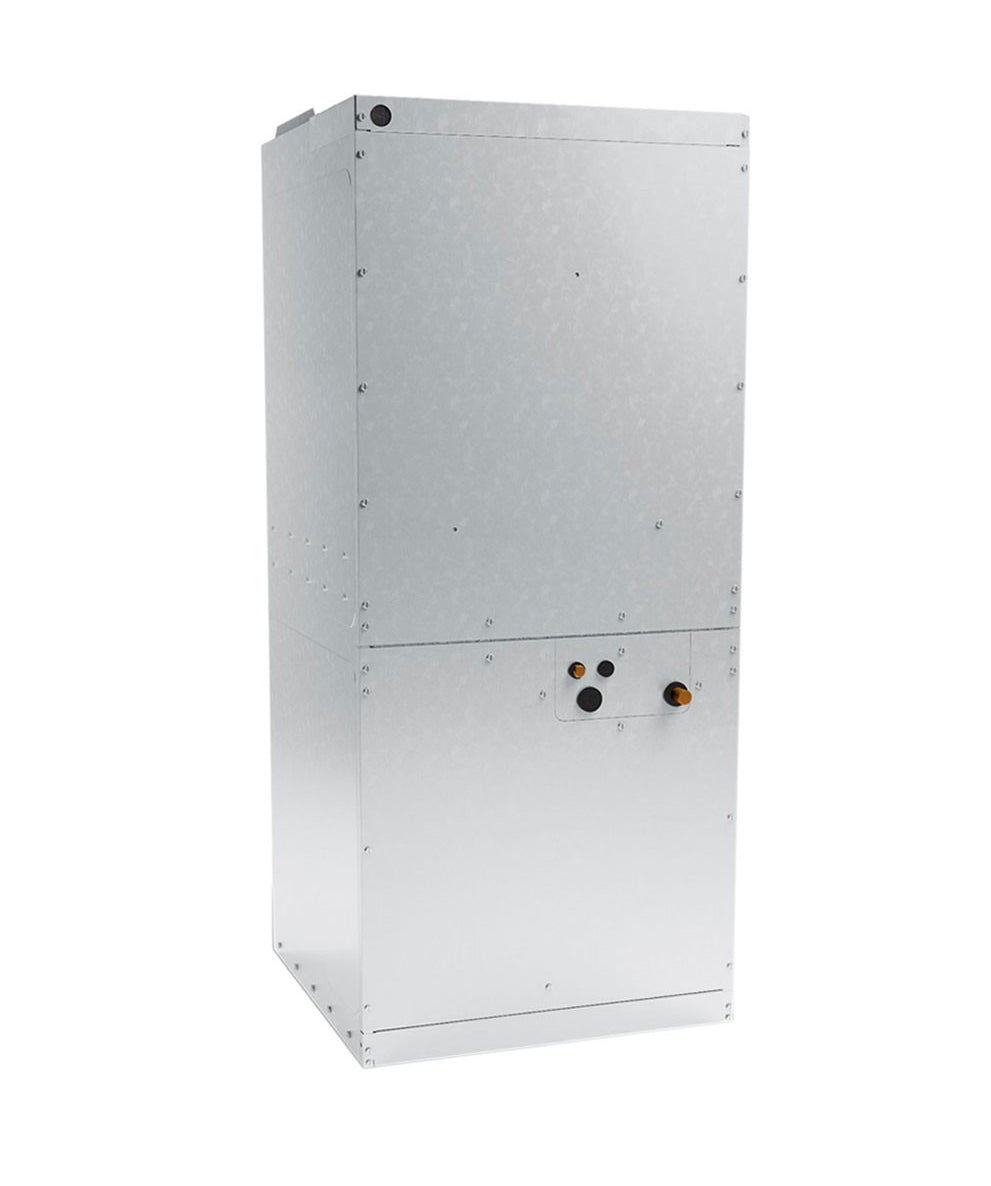

The Daikin Commercial DAQ Multi-Position Air Handler features a factory-installed, internally mounted thermal expansion valve. The heavy-gauge, reinforced galvanized-steel cabinet is insulated with a fiberglass blanket to reduce operating sound levels.

Standard Features:

• Upflow or horizontal (left side) installation positions in 7 and 10 ton cooling only or heat pump applications
• TXV Control; Units have two (2) thermal expansion valves
• DAQ units feature two 5-speed direct-drive motors
• Copper tube/aluminum fin coils
• AHRI Certified; ETL Listed
• R-32 leak mitigation system

Cabinet Features:

• Heavy-gauge, reinforced, galvanized-steel cabinet
• Fully insulated with fiberglass blanket
• Horizontal and vertical condensate pans
• Built-in filter rack 2 inches filter included
• Entry on top of panel for both low and high voltage
• Removable access panels make servicing of unit faster and easier
