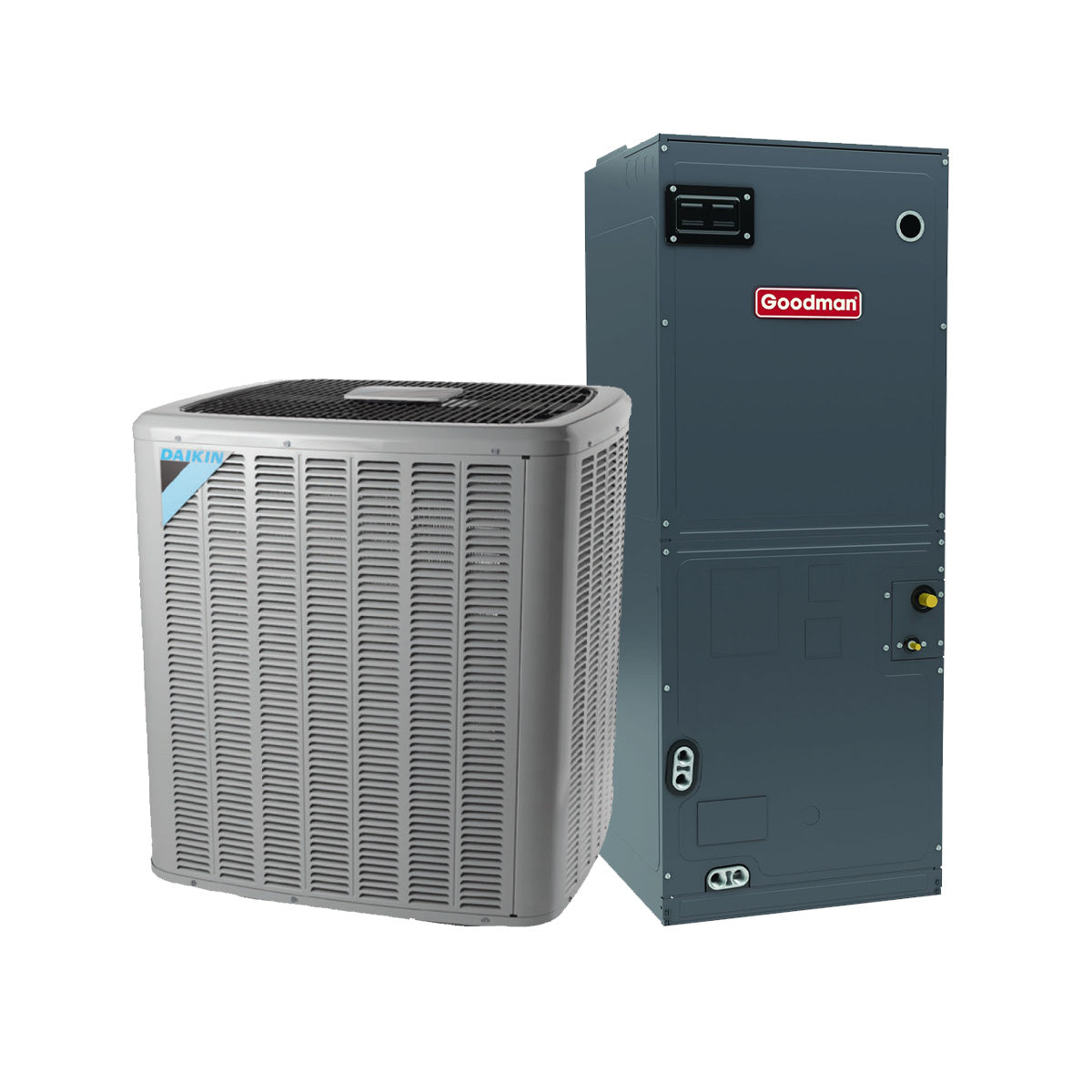

Daikin 5 Ton 13.8 SEER2 R-32 Commercial Air Conditioning System (208/230V)

**Due to the specialized nature of this equipment manufactured to specific job requirements (i.e. voltage, btu, etc.) returns will NOT be accepted on any Commercial Equipment sales. Please be sure to check your application specifications carefully prior to placing your order. ALL SALES ARE FINAL.**

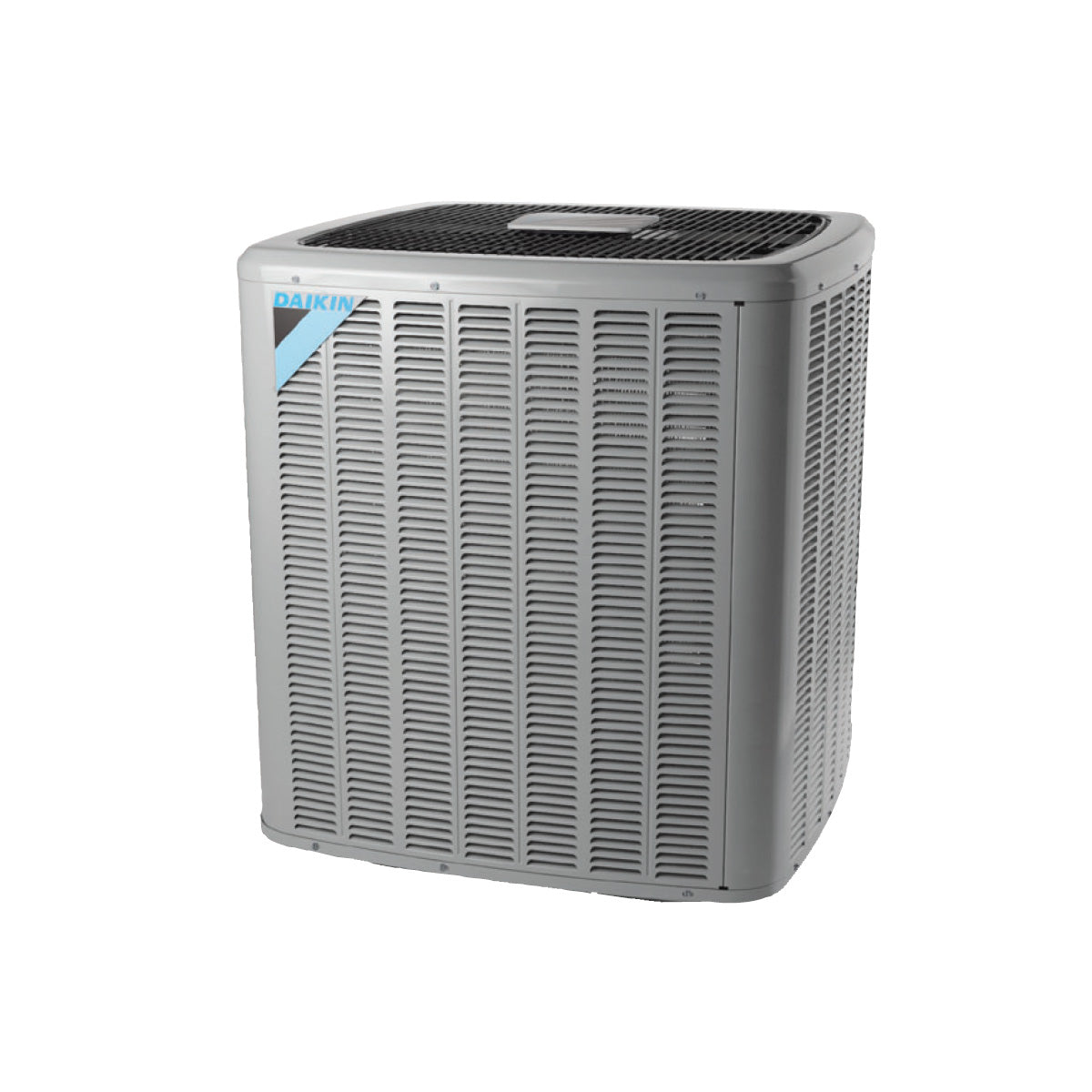

The Daikin Commercial DC3SEA Commercial Air Conditioner uses the A2L compliant R-32 refrigerant and features operating sound levels that are among the best in the heating and cooling industry. With its minimum of 13.4 SEER2 rating, the DC3SEA will help reduce energy consumption throughout the life of the system compared to lower SEER2 rated equipment.

Standard Features:

• High efficiency scroll compressor
• Advanced Copeland® CoreSense™ Technology
• Fully charged for 15’ of tubing length
• Copper tube/ enhanced aluminum fin coil 5mm diameter
• Factory-installed filter drier
• Sweat connection service valves with easy access to gauge ports
• Enclosed contactor
• High-pressure switch
• Ground lug connection
• Capacitors with extended life
• AHRI Certified
• ETL Listed

Cabinet Features:

• Removable grille-style top design compliant with UL 60335-2-40
• Venturi for increased velocity of airflow
• Custom Nickel Gray powder- paint finish with 500- hour salt- spray approval
• Steel louver coil guard with rust-resistant screws
• Wire fan discharge grille
• Steel louver coil guard
• Rust-resistant screws
• Top and side maintenance access
• Single-panel access to controls with space provided for field-installed accessories

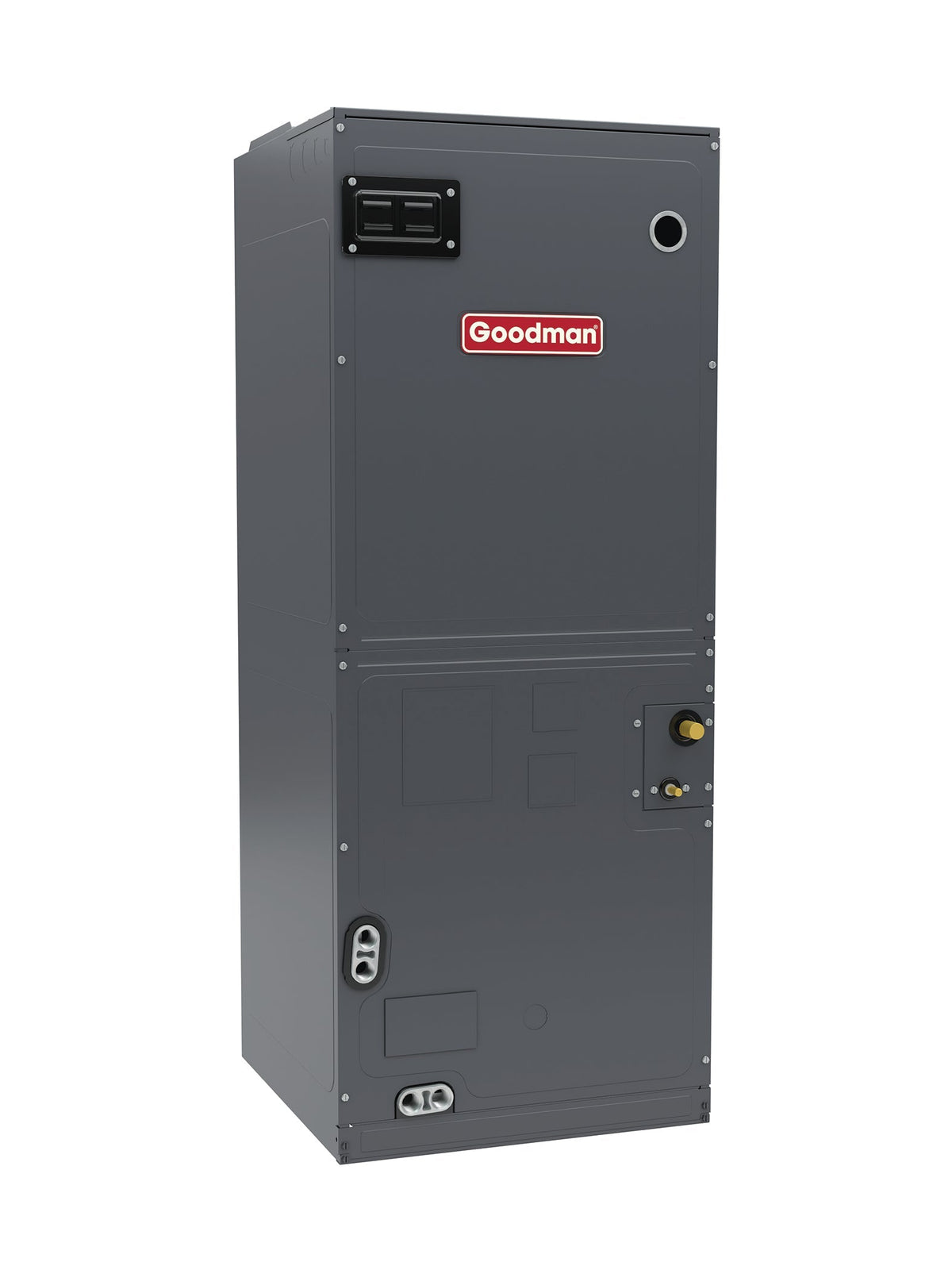

The Goodman AMST Air Handler is now available! This unit is compatible with R-32 units.

Standard Features:

• Internal factory-installed thermal expansion valves for cooling and heat pump applications
• Direct drive, multi-speed ECM blower motor
• All-aluminum evaporator coil
• Coil mounting track for quick repositioning
• Optimized for use with R-32 refrigerant
• Cabinet air leakage less than 2.0% at 1.0 inch Hâ‚‚O when tested in accordance with ASHRAE standard193
• Cabinet air leakage less than 1.4% at 0.5 inch Hâ‚‚O when tested in accordance with ASHRAE standard193
• AHRI certified; ETL listed
• Rigid SmartFrame cabinet
• Horizontal or vertical configuration capabilities
• 21" depth for easier attic access
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Screw-less sides and back helps to reduce con- densation when installed in humid locations
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Glue-less cabinet insulation retention
• Tool-less filter access
