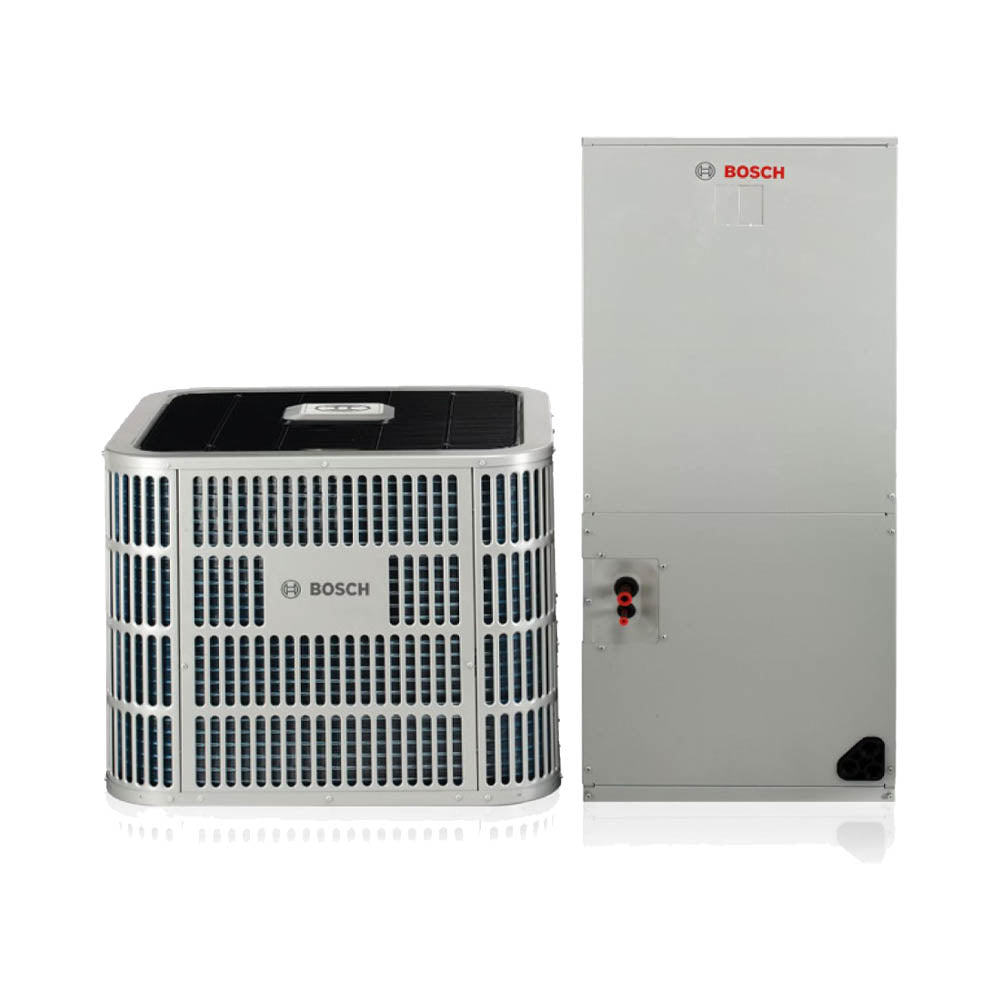

Bosch 5 Ton 14.3 SEER2 R-454B Heat Pump Inverter System

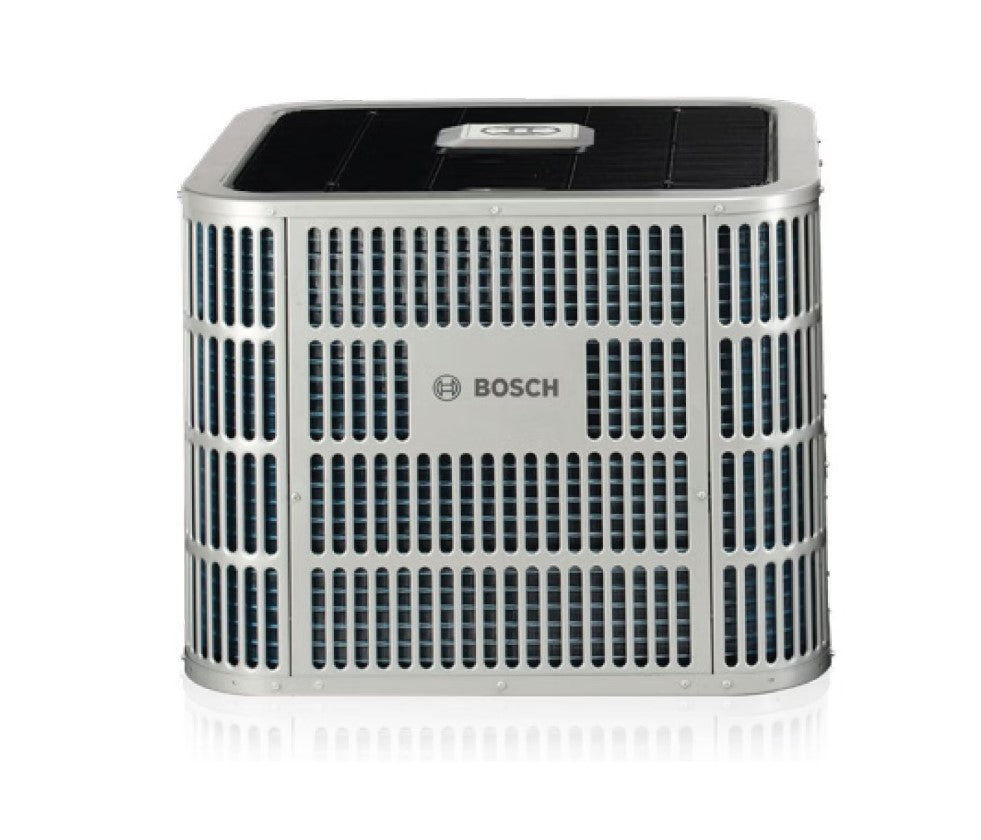

The Bosch BOVA Series Heat Pump utilizes just the right amount of energy to achieve ultimate comfort at maximum efficiency while keeping sound levels to a minimum.

The Bosch Inverter Ducted Split Family provides supremely-efficient comfort by adjusting compressor capacity rather than a simple on/off control like other units, thereby reducing operating costs and saving you money. With enhanced humidity control and higher efficiency, the performance of the Bosch IDS Family provides you with maximum comfort with minimal energy usage! Our systems intelligent features work in tandem with your thermostat to automatically adjust to your preferences, while integrated sound dampening features keep the equipment quiet for your peace of mind.

Standard Features:

• Designed to use R454B Refrigerant
• Inverter Compressor (33%-128% Speed), Modulation in 1% Increments
• Intelligent Oil Return Technology
• Inverter Driven Rotary Compressor
• Crankcase Heater Standard
• Compressor Sound Blanket
• High pressure switch and low pressure transducer
• Compressor liquid return protection
• Compressor high or low compression ratio protection
• Compressor high temperature protection
• High / low voltage protection and over current protection
• IPM and electronic control board high temperature protection
• Outdoor coil is capable of withstanding 1000 hour salt spray test according to ASTM B117 standard
• AHRI certified; ETL listed
• Wind Load compliant per Florida Building Code - 2020
• Baked-on powder paint finish
• Wire fan discharge grille
• Steel louver coil guard
• 5-Years: Standard Parts Warranty
• 10-Years: After Registration

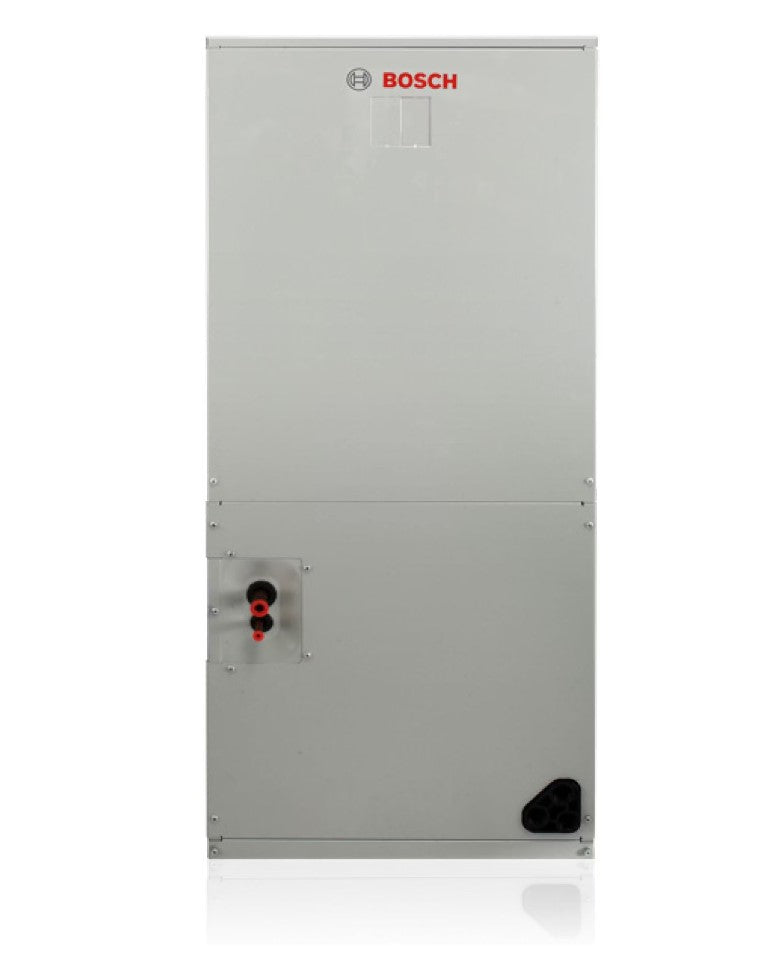

The Bosch BVA Series Air Handler utilizes just the right amount of energy to achieve ultimate comfort at maximum efficiency while keeping sound levels to a minimum.

The Bosch Inverter Ducted Split Family provides supremely-efficient comfort by adjusting compressor capacity rather than a simple on/off control like other units, thereby reducing operating costs and saving you money. With enhanced humidity control and higher efficiency, the performance of the Bosch IDS Family provides you with maximum comfort with minimal energy usage! Our systems intelligent features work in tandem with your thermostat to automatically adjust to your preferences, while integrated sound dampening features keep the equipment quiet for your peace of mind.

Standard Features:

• All aluminum evaporator coil for superior corrosion resistance
• PSC Motor, 3 optional speeds
• 5, 8, 10, 15, 20 kW electric heat accessory kits available for supplemental or emergency heating needs
• Easy to install - compatible with most standard 24 VAC heat pump thermostats
• Factory-installed TXV metering
• Multi-position Installation - upflow or horizontal right standard; field convertible to horizontal left or downflow
• Multiple electrical entry locations
• Dual front panel design for ease of maintenance
• Blower and coil easy slide out for ease of maintenance
• Fully-insulated cabinet design
• Horizontal and vertical condensate drain pans standard
• Condensate drain pan is polymer with UVC inhibitor
• Primary and secondary condensate drain fittings
• Factory-sealed cabinet certified to achieve 2% or less air leakage rate at 1.0 inch water column
• Integrated filter rack with tool-less door access
• AHRI and ETL Listed
• 5-Years: Standard Parts Warranty
• 10-Years: After Registration
